ZE1040 - 1

Save:

ZE1040 - 1" Double Diaphragm Pump

Zeeline by Milton®

Part #: ze1040

$1,362.14

Save:

Quantity

Processing & Handling Time: Orders are processed within 24-48 business hours before shipping. Business hours exclude weekends and holidays.

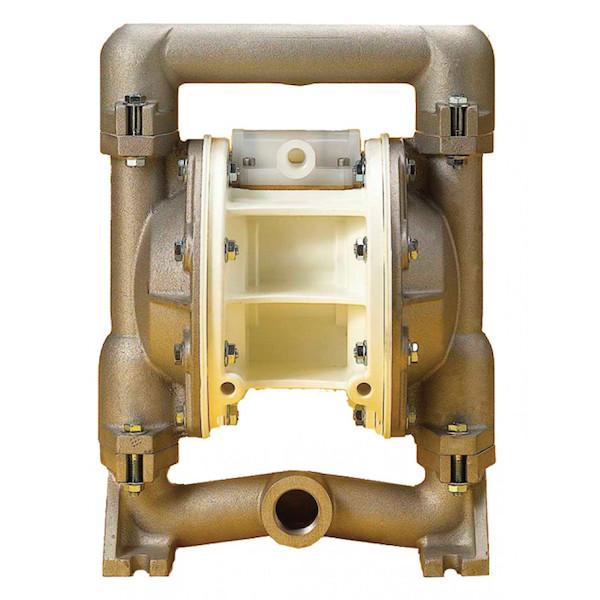

ZE1040 - 1" Double Diaphragm Pump

Warning! This item is not suitable for flammable liquids

Specifications

Air Ratio: 1:1
Fluid Inlet/Outlet: 1" NPT
Max Flow: 37 GPM
Air Inlet Port: 1/4" NPT
Body Construction: Alum / Polypro
Diaphragms: Buna N
Balls: Acetal
Seats: Aluminum
UL LIisted: No
Air Consumption: 40CFM @ 80 PSI
Bolt Pattern: 4.250" X 8.250"
Height: 14.125"
Max Particle Size: 1/8"
Suction Lift-Dry: 15'
Suction Lift- Wet: 25'

Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range :

Warning! This item is not suitable for flammable liquids

Specifications

Air Ratio: 1:1
Fluid Inlet/Outlet: 1" NPT
Max Flow: 37 GPM
Air Inlet Port: 1/4" NPT
Body Construction: Alum / Polypro
Diaphragms: Buna N
Balls: Acetal
Seats: Aluminum
UL LIisted: No
Air Consumption: 40CFM @ 80 PSI
Bolt Pattern: 4.250" X 8.250"
Height: 14.125"
Max Particle Size: 1/8"
Suction Lift-Dry: 15'
Suction Lift- Wet: 25'
