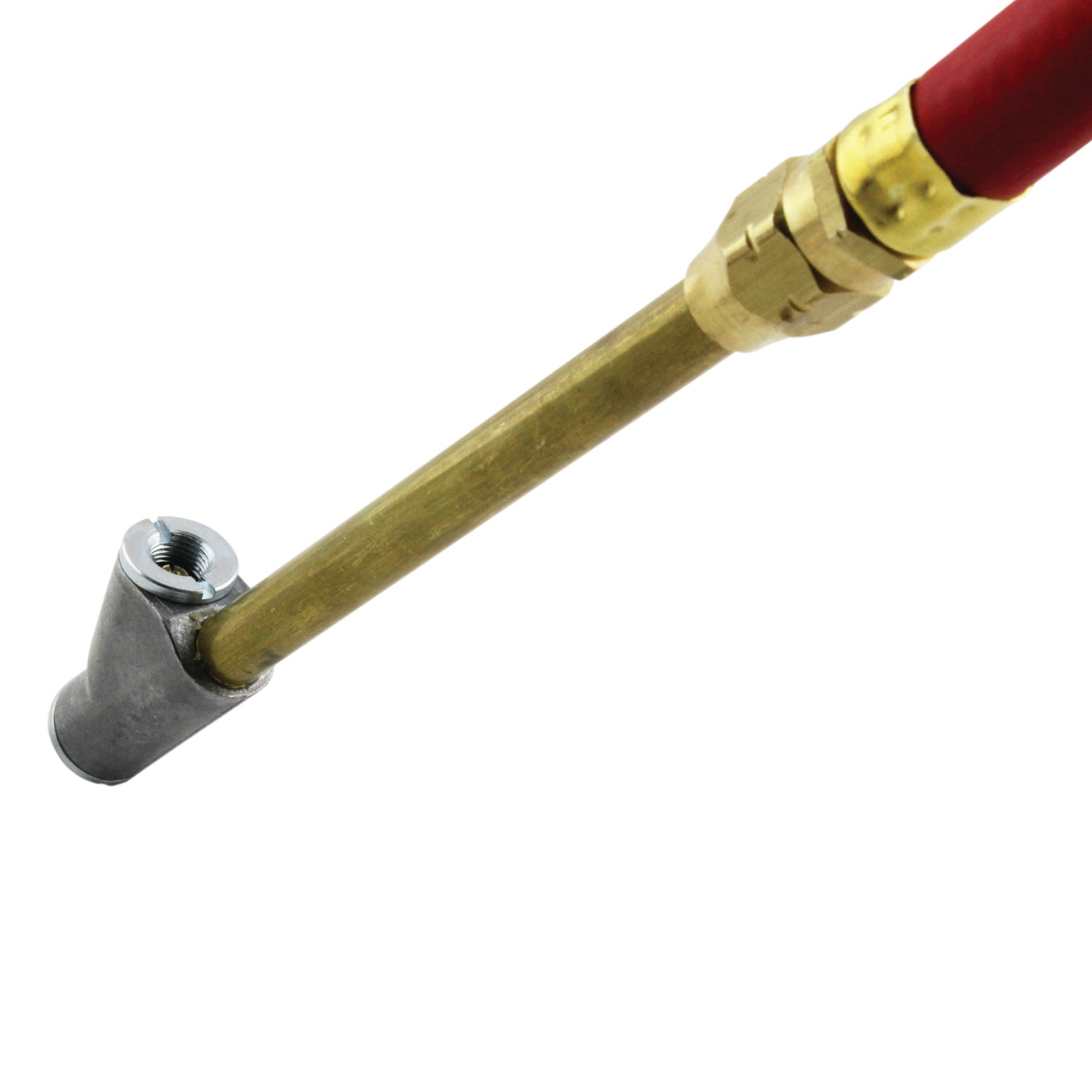

Service Station Tire Inflator and Air Pressure Gauge, Straight Foot Chuck w/ Thread Lock, 1/4" NPT, 15" Rubber Hose, 10-160 PSI (Pack of 5)

Milton Industries Inc.®

Part #: s-516
UPC Code: 30937005168
Number of Items: 5
  • ACCURATE: Performance-tested and calibrated. Measures in pounds per square inch (PSI, 10-160) and kilopascal (kPa, 80-840, increments of 2-lb.) readings.
  • DUAL HEAD CHUCK: Makes tire valves more accessible with the two heads for easier access.
  • LOCK-ON THREADS: One of the heads is parallel to the extension. Both heads have the feature to lock onto the threads, enabling the user to not have to hold the chuck while inflating. Easy one-hand inflation.
  • INFLATOR: Heavy-duty construction. Magnifying window lens. Full-swivel chuck. 15-inch hose.
  • REPLACEABLE PARTS: Gauge and valve cartridges can both be replaced.
$416.85
Save:

Quantity

Service Station Tire Inflator and Air Pressure Gauge, Straight Foot Chuck w/ Thread Lock, 1/4" NPT, 15" Rubber Hose, 10-160 PSI (Pack of 5)

Service Station Tire Inflator and Air Pressure Gauge, Straight Foot Chuck w/ Thread Lock, 1/4" NPT, 15" Rubber Hose, 10-160 PSI



Milton®  Industries specializes in tire inflator gauges were the very first in the industry to offer replacement cartridges! Gauge and valve cartridges are both replaceable. This essential pneumatic tool is ideal for any vehicle trunk, home garage, or automotive shop. Dual head chuck inflator gauge, where one of the heads is parallel to the extension. Both heads have the feature to lock onto the threads which enable the user to not have to hold the chuck while inflating. Made of heavy duty construction which provides for long life, even under extreme use and conditions. Equipped with magnifying lens for full view of scale. Full-swivel chuck.



USES: Auto, sport utility, truck, bicycle, motorsport, trailers, motor homes/5th wheels, wheelbarrows, golf carts, lawn tractors, motorcycles, ATVs, and more. We recommend a Dual Head Large Bore gauge for Dually or extra large truck tires and valves.



PRODUCT SPECIFICATIONS:

PSI: 10-160 Increments: 2 lb.

kPa: 80-840 Increments: 20 kPa

Threads: ⅜-24



INSTRUCTIONS FOR USE:

If using a dual head type tire chuck with an inflator gauge and notice air is escaping through the off-side once connected to the tire’s Schrader valve, simply release the trigger and remove the inflator from the Schrader/tire valve. Point the straight side of the outlet up into the air (make sure it’s not pointed at someone). Squeeze trigger, allow air to flow (gravity will cause the sealing valve to drop), and place the chuck end onto the Schrader/tire valve while air is still flowing. Air will start to flow into the tire.

Dual head type tire chucks are unable to inflate a completely flat (zero air pressure) tire. Tire air pressure would normally cause the sealing valve to move and seal the unused side of the chuck. However, if a tire has 0 air pressure, the self-sealing valve has no pressure to react to.

DRIVE SAFELY: Maintaining proper tire pressures improves vehicle handling, reduces risk of tire failure, improves fuel economy, and increases the life of your tires.

Service Station Tire Inflator and Air Pressure Gauge, Straight Foot Chuck w/ Thread Lock, 1/4" NPT, 15" Rubber Hose, 10-160 PSI



Milton®  Industries specializes in tire inflator gauges were the very first in the industry to offer replacement cartridges! Gauge and valve cartridges are both replaceable. This essential pneumatic tool is ideal for any vehicle trunk, home garage, or automotive shop. Dual head chuck inflator gauge, where one of the heads is parallel to the extension. Both heads have the feature to lock onto the threads which enable the user to not have to hold the chuck while inflating. Made of heavy duty construction which provides for long life, even under extreme use and conditions. Equipped with magnifying lens for full view of scale. Full-swivel chuck.



USES: Auto, sport utility, truck, bicycle, motorsport, trailers, motor homes/5th wheels, wheelbarrows, golf carts, lawn tractors, motorcycles, ATVs, and more. We recommend a Dual Head Large Bore gauge for Dually or extra large truck tires and valves.



PRODUCT SPECIFICATIONS:

PSI: 10-160 Increments: 2 lb.

kPa: 80-840 Increments: 20 kPa

Threads: ⅜-24



INSTRUCTIONS FOR USE:

If using a dual head type tire chuck with an inflator gauge and notice air is escaping through the off-side once connected to the tire’s Schrader valve, simply release the trigger and remove the inflator from the Schrader/tire valve. Point the straight side of the outlet up into the air (make sure it’s not pointed at someone). Squeeze trigger, allow air to flow (gravity will cause the sealing valve to drop), and place the chuck end onto the Schrader/tire valve while air is still flowing. Air will start to flow into the tire.

Dual head type tire chucks are unable to inflate a completely flat (zero air pressure) tire. Tire air pressure would normally cause the sealing valve to move and seal the unused side of the chuck. However, if a tire has 0 air pressure, the self-sealing valve has no pressure to react to.

DRIVE SAFELY: Maintaining proper tire pressures improves vehicle handling, reduces risk of tire failure, improves fuel economy, and increases the life of your tires.

Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range : 10 - 160 PSI in 2 lb. Increments (dup1)
