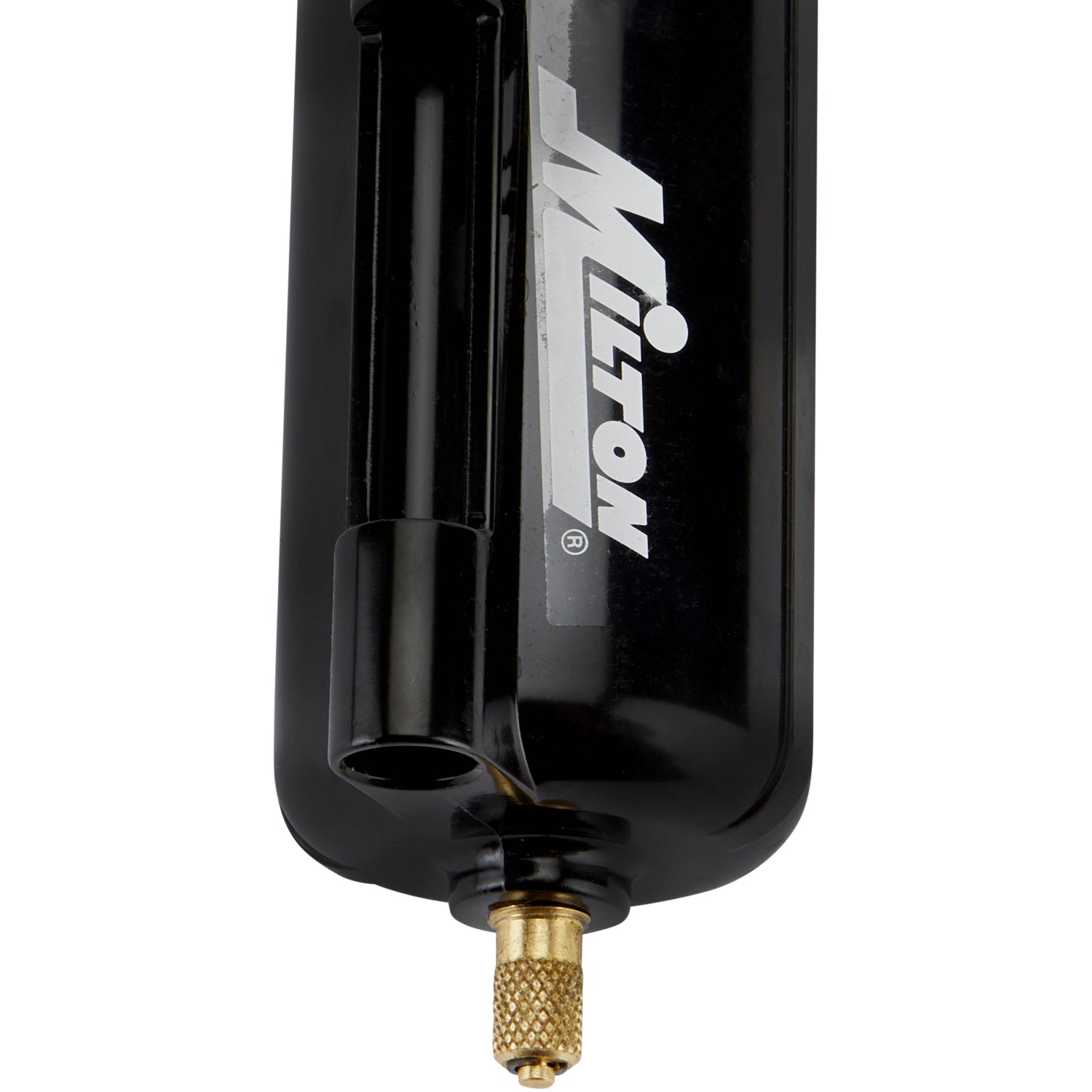

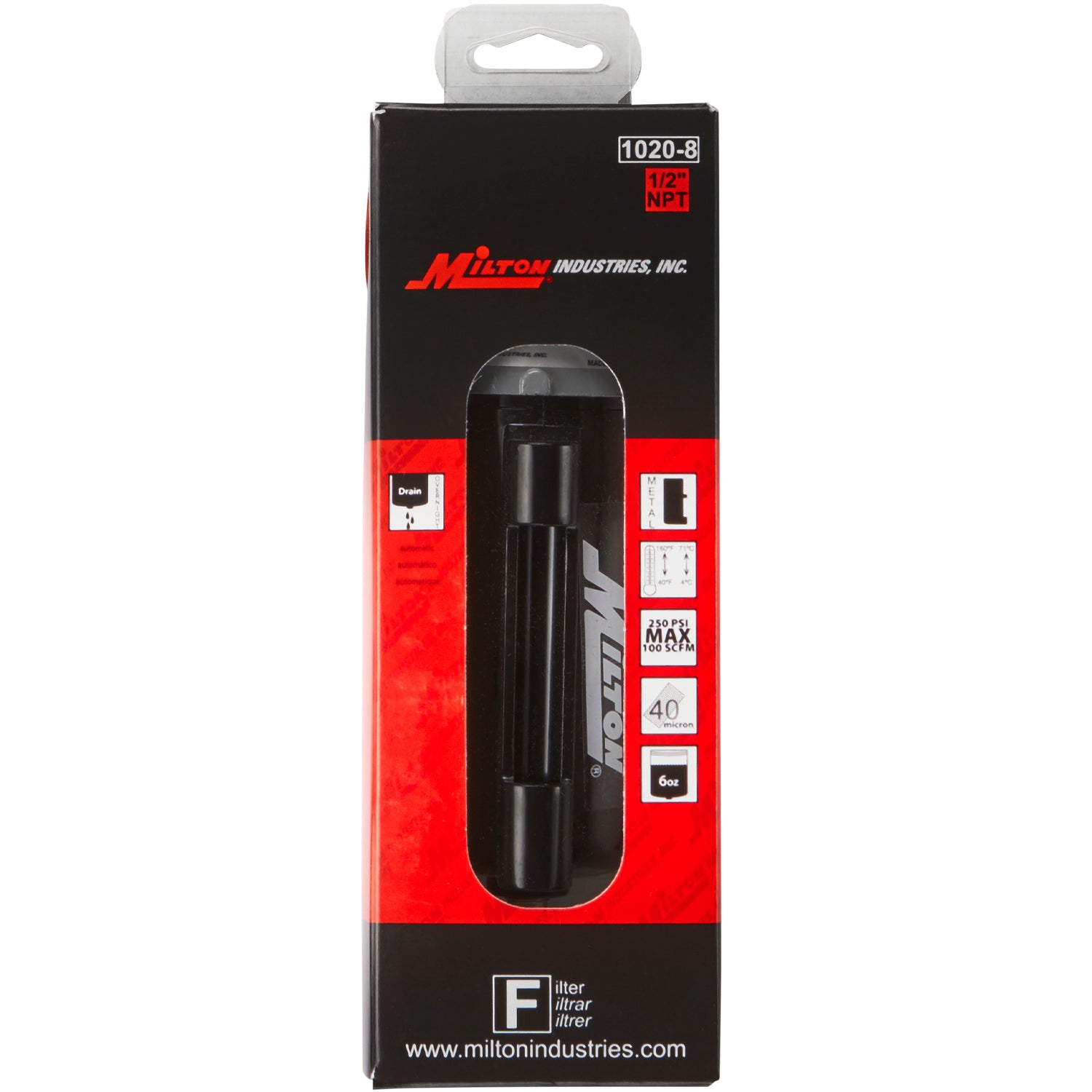

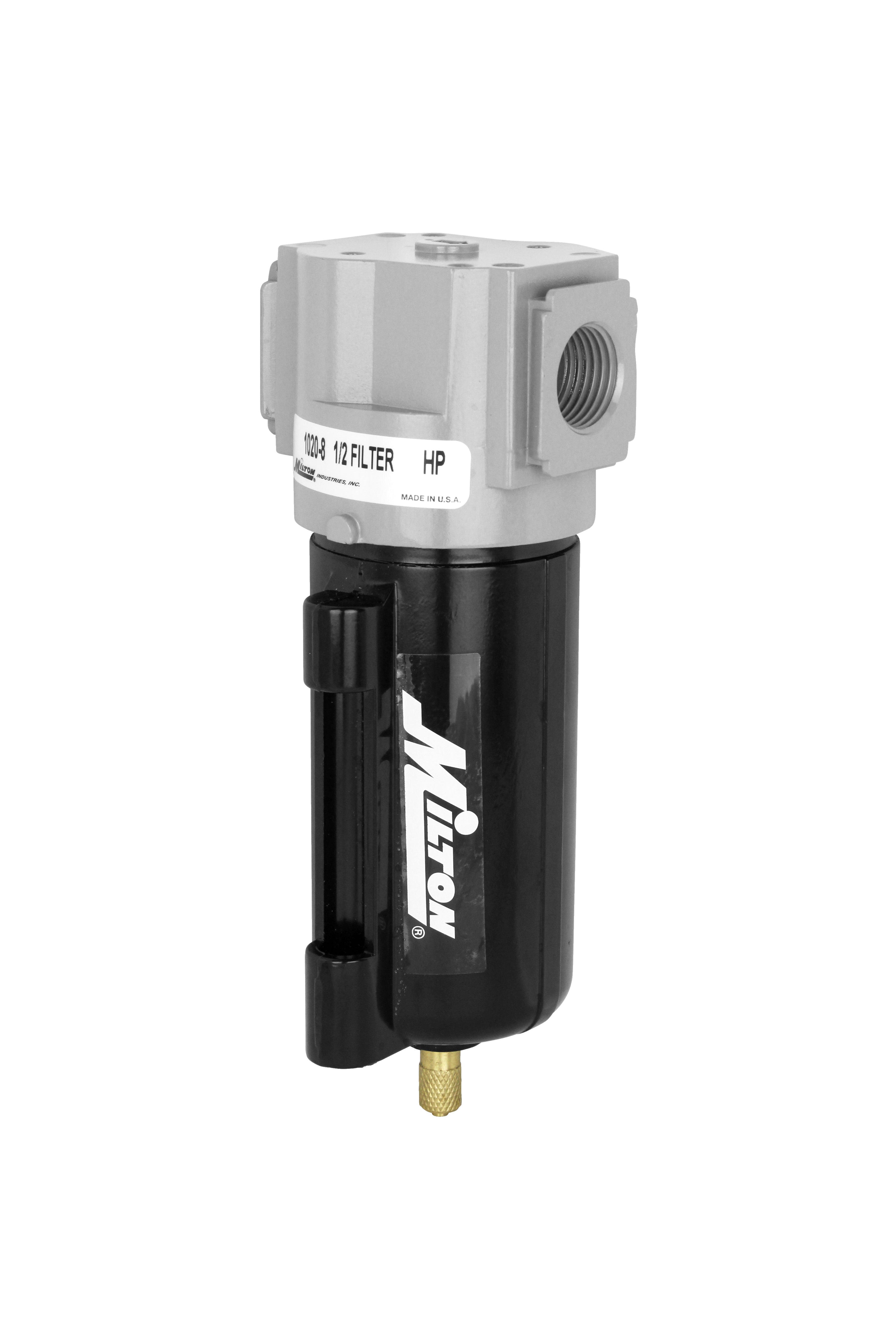

1/2" NPT Heavy-Duty Metal Micro Filter with Automatic Overnight Drain

Milton Industries Inc.®

Part #: 1020-8
UPC Code: 30937102089
Number of Items: 1
  • MAXIMUM PRESSURE OF 250 PSI: Ensures durability and reliable performance in various applications.
  • HIGH AIRFLOW CAPACITY: Maximum of 100 SCFM at 250 PSI, suitable for demanding air flow requirements.
  • AUTOMATIC OVERNIGHT DRAIN: Pre-assembled for convenient moisture removal when air supply is shut down.
  • 3-STAGE BAFFLE SYSTEM: Provides exceptional moisture removal for improved air quality.
  • CORROSION-RESISTANT METAL BOWL: With a capacity of 6 ounces, ensuring long-term durability.
$91.82
Save:

Quantity

1/2" NPT Heavy-Duty Metal Micro Filter with Automatic Overnight Drain

This 1/2" NPT Milton® micro filter is supplied with a pre-assembled automatic overnight drain, which will operate when an air supply is shut down or when the liquid has gathered in the filter bowl. The included 3-stage baffle system offers exceptional moisture removal. This microfilter includes a porous bronze sintered 40-micron filter element which allows less pressure drops and longer cleaning intervals.

Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and long element life. The corrosion-resistant metal bowl has a capacity of 6 ounces. Maximum of 250 PSI and 100 SCFM.

Type of Hose :
Type of fiiting :
Thread Size :
SCFM : Air Flow 100 SCFM
PSI range :

This 1/2" NPT Milton® micro filter is supplied with a pre-assembled automatic overnight drain, which will operate when an air supply is shut down or when the liquid has gathered in the filter bowl. The included 3-stage baffle system offers exceptional moisture removal. This microfilter includes a porous bronze sintered 40-micron filter element which allows less pressure drops and longer cleaning intervals.

Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and long element life. The corrosion-resistant metal bowl has a capacity of 6 ounces. Maximum of 250 PSI and 100 SCFM.
