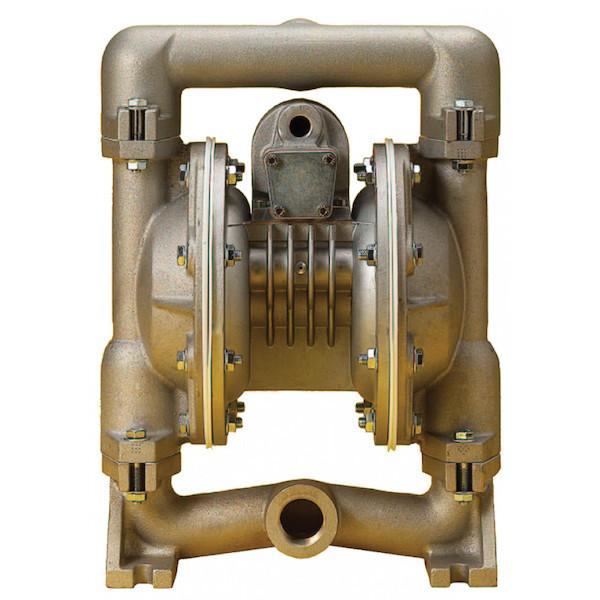

ZE1040UL - 1" Double Diaphragm Pump

Zeeline by Milton®

Part #: ze1040ul

$1,671.67

Save:

Quantity

Processing & Handling Time: Orders are processed within 24-48 business hours before shipping. Business hours exclude weekends and holidays.

ZE1040UL - 1" Double Diaphragm Pump

Warning! This item is not suitable for flammable liquids

Specifications

Air Ratio: 1:1
Fluid Inlet/Outlet: 1" NPT
Max Flow: 37 GPM
Air Inlet Port: 1/4" NPT
Body Construction: Aluminum
Diaphragms: Buna N
Balls: PTFE
Seats: Aluminum
UL Listed: Yes
Air Consumption: 30CFM @ 50 PSI
Bolt Pattern: 4.250" X 8.250"
Height: 15.125"
Max Particle Size: 1/8"
Suction Lift- Dry: 15'
Suction Lift- Wet: 25'

Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range :

Warning! This item is not suitable for flammable liquids
