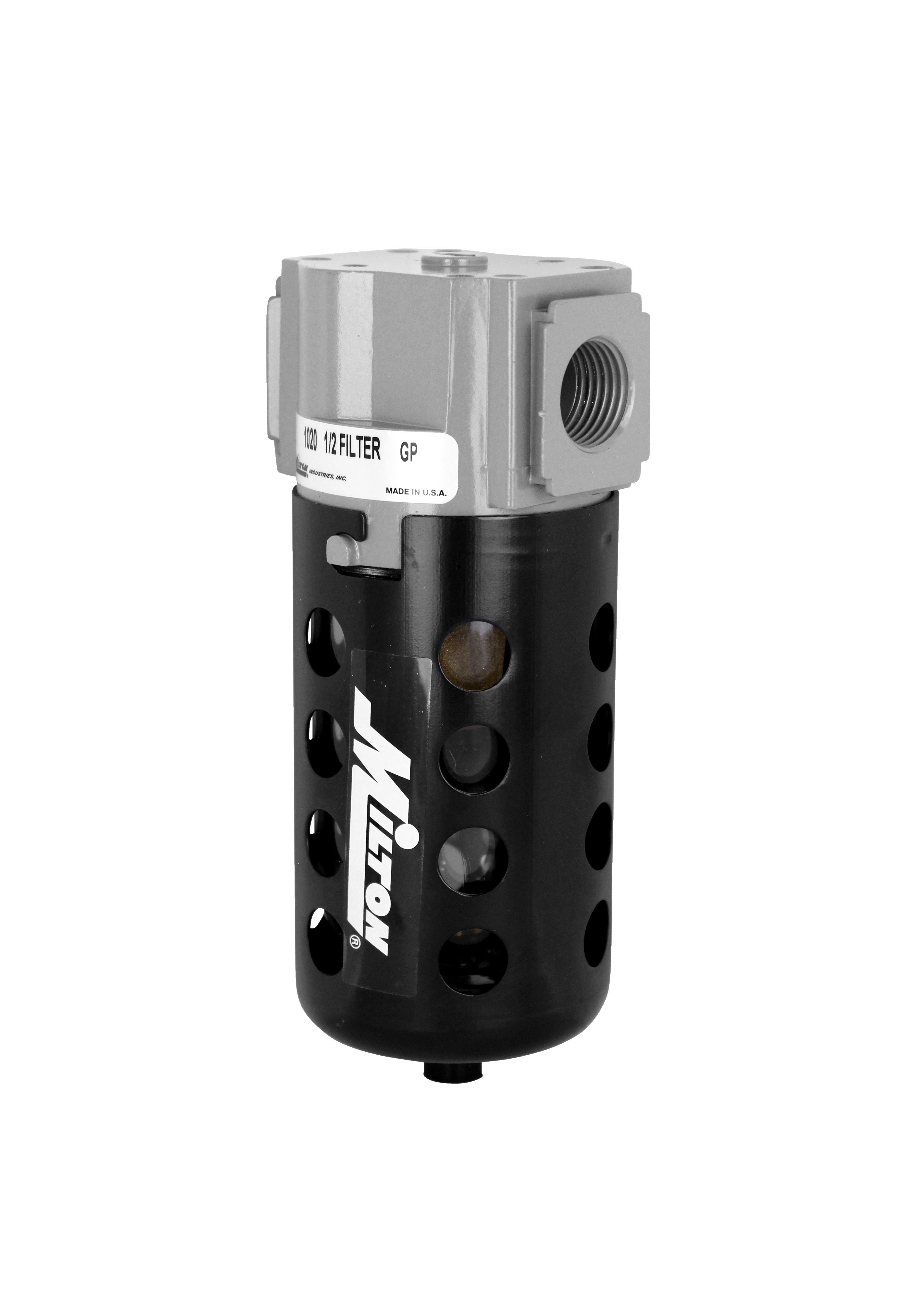

1/2" NPT Polycarbonate Micro Filter

Milton Industries Inc.®

Part #: 1020
UPC Code: 30937110206
Number of Items: 1
  • 1/2" national pipe thread
  • Maximum pressure of 150 pounds per square inch
  • Maximum of 48 standard cubic feet per minute at 100 pounds per square inch
  • Install upstream from regulators
  • Offers a pressure range of 40 to 125 degrees Fahrenheit
  • Can be set up as a modular unit as well
$79.99
Save:

Quantity

1/2" NPT Polycarbonate Micro Filter

This 1/2" NPT Milton® micro filter is supplied with pre-assembled automatic overnight drain which will operate when an air supply is shut down or when liquid has gathered in the filter bowl. The included 3 stage baffle system offers exceptional moisture removal. This micro filter includes a porous bronze sintered 40 micron filter element which allows less pressure drops and longer cleaning intervals. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and long element life. This polycarbonate bowl has a bowl capacity of 5 ounces and is protected by a safety metal bowl guard. Maximum of 150 PSI and 48 SCFM.

This 1/2" NPT Milton® micro filter is supplied with pre-assembled automatic overnight drain which will operate when an air supply is shut down or when liquid has gathered in the filter bowl. The included 3 stage baffle system offers exceptional moisture removal. This micro filter includes a porous bronze sintered 40 micron filter element which allows less pressure drops and longer cleaning intervals. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and long element life. This polycarbonate bowl has a bowl capacity of 5 ounces and is protected by a safety metal bowl guard. Maximum of 150 PSI and 48 SCFM.

Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range :
