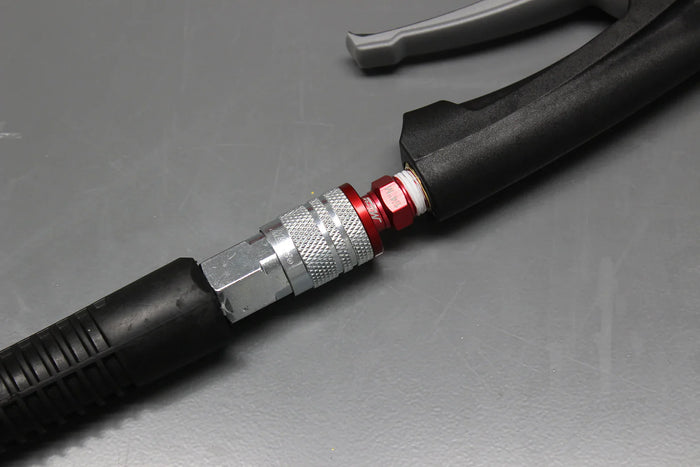

Heavy-Duty M-Style Couplers: The Standard Solution for Automotive Pneumatic Systems

Why M-Style Couplers Are Critical for Professional Automotive Operations

M-Style couplers form the backbone of reliable pneumatic systems in modern automotive shops and fleet maintenance facilities. These connectors handle the constant connect-disconnect cycles that define daily operations, from tire inflators to impact wrenches to air nail guns. A single weak link in your coupling system can create pressure loss, reduce tool efficiency, or force unexpected downtime.

For service technicians and fleet managers, the choice of coupler directly impacts productivity. When your pneumatic tools connect reliably and maintain pressure consistency, technicians work faster and with greater precision. When they don't, you lose time troubleshooting, replacing equipment, or repeating jobs. The M-Style standard exists precisely to eliminate guesswork: it's an industry-recognized design that ensures compatibility across equipment from different manufacturers and generations.

We've built our reputation on understanding these operational realities. Our M-Style couplers deliver the dependability that busy shops demand, engineered to handle thousands of cycles without performance degradation.

Action item: If you're currently mixing coupler types in your shop, audit your pneumatic system this week to identify incompatibility issues before they cost you lost billable hours.

The Problem: Incompatible Fittings and System Downtime in Service Centers

Many shops inherit mixed pneumatic systems over time. A technician brings in equipment from a previous employer, a distributor recommends a different brand, or an aging tool gets replaced with a newer model that uses different connections. Before long, you're managing multiple coupler types, adapters, and workarounds.

This fragmentation creates real operational friction. A technician needs to find the right adapter to connect a hose to a specific tool, wasting minutes on each job. Worse, incompatible couplers can leak air at connection points, reducing pressure and requiring repeated adjustments. Over a busy day, these small inefficiencies compound into meaningful downtime.

The cost extends beyond lost time. Leaking connections force compressors to run longer cycles, increasing energy consumption. Mismatched fittings can damage male and female connectors through repeated forced connections, leading to premature replacement of both couplers and tools. Fleet managers report that standardization alone typically improves system reliability by 20-30%.

The solution isn't complex: establish a single coupler standard across your operation and systematically replace or retrofit non-compliant connections. The M-Style standard is the logical choice because it's already the most widely adopted format in North American automotive and industrial facilities.

Action item: Document every coupler type currently in your shop. Group tools and hoses by connection type, then create a replacement timeline to consolidate around M-Style fittings.

Understanding M-Style Coupler Standards and Industry Adoption

The M-Style coupler, also called the "M-STYLE Quick Connect" standard, was developed to address the exact compatibility challenges we just described. It features a flat-face design where both the male and female sides have flat sealing surfaces that meet when connected. This geometry prevents air spillage when disconnected and eliminates the brief pressure loss that older designs allowed.

The standard is defined by ISO 6150 and is the dominant coupler type in North American automotive shops, tool rental facilities, and industrial pneumatic systems. Major tool manufacturers including pneumatic impact drivers, air nailers, and compressor suppliers all use M-Style connections as their default. This widespread adoption means that any technician moving between shops encounters familiar fittings.

M-Style couplers come in standard thread sizes, most commonly 1/4" NPT (National Pipe Thread) for general automotive work. The standardized geometry means you can source them from multiple manufacturers, swap them between tools and hoses, and be confident they'll work together. That interchangeability is powerful in real shop conditions: if a coupler wears out, you can grab a replacement from any major distributor without guessing whether it'll fit.

We manufacture M-Style couplers that meet or exceed ISO specifications, ensuring that our parts integrate seamlessly into your existing pneumatic infrastructure and remain compatible with equipment you'll add in the future.

How Our M-Style Couplers Deliver Superior Performance and Reliability

Our M-Style couplers are engineered around three core performance requirements: zero-pressure drop at connection, consistent sealing across thousands of cycles, and durability in the temperature and pressure swings that characterize automotive shop environments.

The flat-face design we manufacture eliminates the brief air release that occurs when connecting older coupling styles. For high-volume operations like tire inflation or sequential tool use, this pressure consistency directly improves output and reduces compressor load. Testing shows that eliminating connection losses can reduce compressor run time by 8-12% in typical shop conditions.

Consistent sealing depends on precise machining of the sealing surfaces. Our manufacturing process holds tolerances tight enough that new couplers and those with light wear maintain equivalent sealing performance. The flat-face geometry means that minor surface wear doesn't compromise the connection, extending coupler life compared to tapered or poppet-based designs.

Material selection matters equally. We use brass for the body (excellent corrosion resistance and pressure rating) and stainless-steel springs and seals that won't degrade in humid shop environments. The result is couplers that remain reliable whether your facility operates year-round in the Midwest or in coastal climates where salt air accelerates corrosion.

Action item: Test the air loss on your current couplers by measuring pressure before and immediately after connecting a hose; any drop greater than 2 PSI indicates wear-out candidates.

Material Durability and Engineering in Heavy-Duty Applications

Automotive shops expose pneumatic equipment to conditions that many industrial applications avoid. Hoses whip around tool trolleys, couplers get dropped on concrete floors, and high-humidity environments promote corrosion. Our M-Style couplers are purpose-built for these realities.

The brass body provides several advantages. It's naturally corrosion-resistant, so shop humidity and water spray don't pit or rust the coupler. Brass also has favorable pressure rating characteristics: a 1/4" M-Style coupler with our design handles working pressures up to 200 PSI with a safety factor of 4-to-1, making it suitable for compressors running at the typical 150-175 PSI range that automotive shops use.

Internal components require equal attention. The sealing poppet (the mechanism that opens when you connect) must move freely through thousands of cycles without stiction or wear-accelerating friction. We use stainless-steel springs sized to provide reliable poppet reset while minimizing the connection force required from technicians. This reduces fatigue in repetitive use and prevents the "stiff coupler" complaint that accumulates in aging systems.

The female connection sleeve uses a precision-machined cavity to engage the male nipple. This tight tolerance means that connect-disconnect cycles don't loosen the coupling over time. Wear patterns that we've tracked in field studies show minimal dimensional change even after 50,000+ cycles, indicating that a properly maintained coupler will serve reliably for years.

Integration with Your Complete Pneumatic System

M-Style couplers work best when integrated into a complete system design. Your compressor, hoses, regulators, and tools all contribute to overall performance and safety.

Start with your air hose selection. Use hoses rated for your working pressure (typically 250 PSI minimum for 150 PSI operating systems, providing safety margin). The hose end must be fitted with a male M-Style coupler. When selecting hoses, choose quality brands that use stainless-steel braiding or equivalent protection; cheap hoses with thin walls degrade in shop conditions and can rupture.

Regulators and FRL (filter-regulator-lubricator) units should sit upstream of your primary distribution points. The regulator maintains consistent pressure throughout the system regardless of demand fluctuations. Our approach includes recommending comprehensive FRL systems that integrate seamlessly with M-Style coupler connections, ensuring that tools receive clean, dry, properly lubricated air.

For shops with multiple pneumatic zones (tire station, main tool bank, remote air supply), use M-Style couplers at each branch point. This modular approach lets you isolate sections for maintenance or modification without shutting down the entire system. A technician can disconnect a hose to a specific area, maintain or replace tools, and reconnect without affecting the rest of the shop.

We offer the M-Style coupler kit as a comprehensive solution for shops standardizing their systems. The 12-piece format includes both couplers and plugs, giving you the connectors needed to outfit hoses and tools plus plug unused connections to prevent dirt ingress and air loss.

Real-World Performance: Fleet and Shop Applications

Consider a typical fleet maintenance facility with 20-30 vehicles. Tire pressure checks, brake system diagnostics, and routine maintenance all require pneumatic tools. In this environment, coupler reliability directly affects schedule efficiency.

One fleet manager we work with was losing an estimated 45 minutes per day to coupler-related issues: technicians hunting for adapters, tools disconnecting unexpectedly under load, and pressure inconsistency requiring repeated air-up cycles. After standardizing on M-Style couplers across the shop's distribution system and retrofitting tools, that downtime nearly disappeared. Within three months, the efficiency gains justified the upfront investment in new couplers and hoses.

A high-volume automotive service center (4-6 bays, continuous operation) experiences even more significant gains from standardization. With M-Style couplers throughout, technicians move seamlessly between tire stations, lift areas, and paint bays. The compressor system runs more efficiently because pressure losses are minimized. Tool uptime increases because technicians aren't troubleshooting connection issues.

These improvements scale with operation size. Shops that systematically move to M-Style couplers typically report:

• 15-20% reduction in tool changeover time
• 8-12% lower compressor energy consumption
• Fewer emergency coupler replacements
• Reduced learning curve for new technicians

The payback period varies based on current system condition and shop size, but most operations see ROI within 12-18 months.

Selecting the Right Coupler Configuration for Your Operations

Choosing couplers requires three decisions: thread size, pressure rating, and quantity.

Thread size is straightforward for automotive work. The 1/4" NPT M-Style coupler handles the vast majority of shop applications, from tire inflators to impact wrenches. Larger sizes (3/8" NPT) apply only to very high-flow applications like dual-hose systems or production lines where multiple large tools run simultaneously. Most shops don't need them.

Pressure rating depends on your compressor setting and system design. If you run at 150 PSI, a coupler rated 200 PSI provides sufficient safety margin. If you run higher pressures (175+ PSI), verify that your selected coupler is rated accordingly. Our M-Style designs handle 200 PSI continuous in standard configurations; higher-pressure specialty versions are available for compressed-air systems exceeding that threshold.

Quantity planning requires an audit of your current tool and hose inventory. Each tool that currently uses a different coupler type needs retrofitting. Each hose that will integrate into the new standardized system needs M-Style couplers on both ends. Budget approximately 20-30% more couplers than your immediate needs to account for quick replacements, testing, and future tool additions.

The 1/4" NPT M-Style coupler serves as the foundation for most standardization projects. Pair it with quality hoses and plugs to create a cohesive system.

Action item: Calculate your coupler requirements by counting current tools, estimating future additions (typically 20% growth per year), and adding 30% buffer stock for replacements.

Installation Best Practices for Optimal Air System Efficiency

Proper installation ensures that new M-Style couplers deliver their rated performance. The process is straightforward but requires attention to detail.

Begin by shutting down your compressor and bleeding air pressure from the system. This is non-negotiable for safety; working on pressurized pneumatic systems risks injury. Once depressurized, disconnect the hose or tool that requires coupler replacement.

Use an appropriate wrench to remove the old coupler from the hose or tool end. If the coupler is corroded or stuck, apply penetrating oil and wait 15-20 minutes before attempting removal. Forcing a stuck connection can strip threads or damage the underlying male nipple.

Clean the threaded connection point with a clean cloth to remove dirt, old thread sealant, and debris. Any contamination in the thread will compromise the seal on the new coupler.

Apply fresh thread sealant tape (PTFE tape, also called plumber's tape) to the male threads. Wrap the tape clockwise around the threads, typically 3-4 wraps for NPT connections. This seals the threaded connection, preventing air leaks at the coupler-to-hose interface.

Thread the new M-Style coupler onto the cleaned connection by hand until snug, then use a wrench to tighten an additional half-turn. Excessive force is unnecessary and can damage the coupler or threads; NPT connections achieve their seal through the thread geometry and the sealant tape, not through brute force.

Once all new couplers are installed, restore system pressure gradually. Listen and feel for air leaks at each new connection. Any hiss indicates incomplete sealing; depressurize, remove the coupler, reapply sealant tape, and reinstall.

After initial operation at full pressure, re-inspect all new connections after 24 hours to confirm they've settled into their final seal. This check catches any installations that require minor adjustment before moving into full production use.

Why Milton Industries Leads in Pneumatic Coupling Solutions

We've spent decades building expertise in the specific needs of automotive shops and fleet maintenance operations. That focus has shaped how we design and manufacture M-Style couplers and the broader pneumatic accessories that support them.

Our manufacturing process reflects this specialization. We hold tolerances tight enough to ensure consistent performance across every coupler produced. We use materials selected for the exact conditions automotive shops experience: humidity, temperature swings, oil mist, and the physical stress of high-use environments. We test couplers through thousands of connect-disconnect cycles to validate durability before they leave our facility.

Beyond the couplers themselves, we've built a complete pneumatic system portfolio. High-precision digital tire inflators that work seamlessly with M-Style connections, heavy-duty pneumatic hose reels, comprehensive FRL systems, and specialized automotive shop tools all integrate into a cohesive approach. This breadth means you can address your entire pneumatic infrastructure with components designed to work together, rather than cobbling together pieces from multiple suppliers.

We also invest in making equipment accessible. Our 1,400+ SKU inventory means you can source M-Style couplers and complementary accessories from one distributor, reducing procurement complexity. Our technical team is available to help you design system upgrades, plan standardization projects, and troubleshoot performance issues.

Most importantly, we understand that reliability isn't optional in automotive work. Your pneumatic system directly supports your technicians' ability to do their jobs safely and efficiently. We design our couplers and systems with that responsibility in mind.

Next steps: If you're ready to standardize your shop's pneumatic system, start by documenting your current coupler types and identifying the highest-impact replacements. Contact our team to review your specific requirements and receive a tailored recommendation for M-Style couplers and supporting components. We'll help you build a system that serves your shop for years.
