How to Select Industrial Shop FRL Systems for Optimized Air Quality

Why Air Quality Matters in Your Shop Operations

Compressed air powers your shop's operations, but the quality of that air determines whether your tools perform reliably or fail prematurely. An FRL system—the combination of filter, regulator, and lubricator—sits at the heart of air quality management. We'll walk you through selecting the right FRL components for your specific operational needs, from understanding what contamination actually costs you to sizing equipment that matches your shop's demand profile.

Untreated compressed air carries water vapor, oil aerosols, dust, and particulate matter from the compressor itself. These contaminants accumulate in your pneumatic tools, hoses, and downstream equipment, causing wear, corrosion, and performance degradation. When you run impact wrenches, grinders, or air chisels on dirty air, you're essentially sandblasting internal components from the inside.

Beyond tool damage, poor air quality creates safety risks. Moisture in brake system applications can compromise stopping ability. Contaminated air in paint sprayers produces visible defects and requires rework. In precision tire gauge applications, particulate matter can block sensor ports and render measurements unreliable.

A properly configured FRL system removes these contaminants at the point of use, delivering clean, dry, consistently regulated air exactly when you need it. This protects both your equipment investment and your bottom line. The upfront cost of quality FRL equipment typically pays for itself within months through reduced tool replacement and downtime.

Actionable takeaway: Assess your current air quality by listening for excessive tool noise, checking for oil residue in discharge areas, and monitoring how often you replace seals in downstream equipment. These symptoms indicate FRL intervention is overdue.

The Real Cost of Poor Compressed Air Quality

The financial impact of contaminated air extends beyond obvious tool failures. Consider a typical automotive service shop: if compressed air quality allows moisture into brake system work, you face liability exposure when that vehicle's braking performance degrades. A single brake-related failure incident can cost far more than a year's investment in proper filtration.

Tool replacement represents a direct, measurable expense. An impact wrench that should last three years might fail in eighteen months when operated on dirty air. At an average cost of $300-500 per tool, losing even four tools annually across your team adds up quickly. Multiply that by air chisels, die grinders, and other pneumatic implements, and you're looking at thousands in unnecessary replacement costs.

There's also the hidden cost of efficiency loss. Tools running on contaminated air work harder, require more frequent maintenance, and deliver inconsistent performance. A pneumatic wrench that chatters or seizes mid-operation wastes technician time. That technician earns the same hourly rate whether they're productive or troubleshooting equipment problems.

Compressor maintenance itself becomes more expensive without downstream filtration. Moisture and debris circulate through the compressor, accelerating wear on valves and gaskets. Unplanned compressor downtime shuts down your entire operation.

Calculating your actual cost of poor air quality requires tracking tool replacement frequency, maintenance hours spent on equipment repairs, and lost billable time. Many shops discover they're spending 2-5% of revenue on air-quality-related issues. Proper FRL selection typically costs less than 10% of those losses.

Actionable takeaway: Document your current pneumatic tool failure rate and maintenance log for the past six months. This data provides a baseline cost that justifies FRL system investment and helps you select the right filtration level for your specific equipment mix.

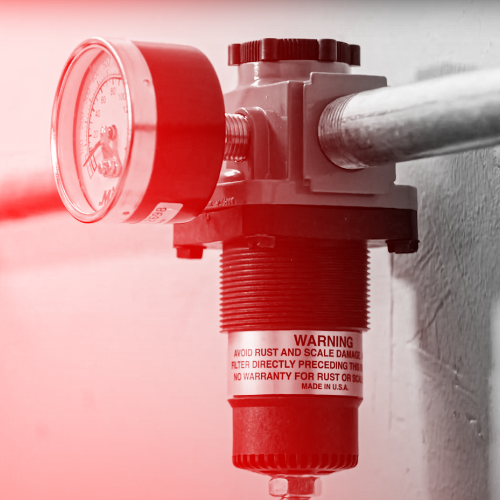

Understanding FRL System Components and Function

An FRL system comprises three integrated stages, each serving a distinct purpose. Understanding what each component does helps you make informed selections.

The filter removes particulate matter and separates bulk water from compressed air. As air passes through the filter element, particles larger than the micron rating are trapped. A drain mechanism—manual or automatic—expels accumulated moisture and debris. Filters typically have micron ratings ranging from 100 (coarse) down to 3 microns (fine). Your choice depends on what downstream equipment requires.

The regulator maintains consistent downstream pressure regardless of incoming pressure fluctuations. As you use air and demand changes, the regulator adjusts to keep outlet pressure stable. This matters because pneumatic tools are engineered to operate within specific pressure ranges. Too much pressure stresses seals and shortens tool life; too little reduces power and speed. Regulators include a gauge for monitoring downstream pressure and may feature lockable adjustment screws to prevent unauthorized pressure changes.

The lubricator injects measured amounts of oil into the airstream to coat internal pneumatic tool components. This reduces friction, extends seal life, and improves overall tool longevity. Not all applications require lubrication—some pneumatic actuators are designed for oil-free operation, and compressed air systems used in food processing or pharmaceuticals must remain completely dry. Understanding your specific application is critical before selecting lubrication strategy.

These three components work together: the filter cleans the air, the regulator sets appropriate pressure, and the lubricator protects downstream equipment. Together, they form the foundation of reliable compressed air delivery.

Actionable takeaway: Inspect your current compressor setup and identify whether you currently have filtration, regulation, or lubrication in place. If these components are absent or outdated, this explains operational issues you may be experiencing.

Assessing Your Shop's Air Demand and Pressure Requirements

Proper FRL sizing begins with understanding exactly how much air your shop consumes and at what pressure. This requires evaluating both peak demand and average consumption patterns.

Start by listing every pneumatic tool and device connected to your system. Record the manufacturer's CFM (cubic feet per minute) requirement for each tool at its rated operating pressure. For example, an impact wrench might require 4 CFM at 90 PSI, while an air ratchet needs 3 CFM at 80 PSI. Add up these individual requirements to establish your peak simultaneous demand—the maximum CFM you might need at any given moment.

In reality, you rarely use every tool simultaneously. Calculate your actual demand by considering how many tools typically run at once during your busiest periods. If your shop has three technicians and each uses one primary tool at a time, your peak demand is the CFM of the tool with the highest requirement, plus maybe 15% overhead for ancillary uses like air cleaning.

Pressure requirements vary by tool type. Most automotive shop tools operate between 80-100 PSI. Brake service tools often require stable 90 PSI, while impact wrenches may prefer 95-100 PSI for maximum power. If your shop uses equipment with mixed pressure requirements, you'll need a regulator that can be adjusted or potentially multiple FRL units configured for different pressure zones.

Record your compressor's rated output at its normal operating pressure. A typical automotive shop compressor might produce 80 CFM at 90 PSI. If your peak demand exceeds this, you'll need either a larger compressor or a storage tank to absorb demand spikes. An undersized FRL system doesn't create air—it simply cannot deliver more than your compressor produces.

Document seasonal variations. Some shops experience higher demand in winter due to fluid warming or increased antifreeze work. Others see summer peaks from air conditioning service. Planning for your highest-demand season ensures the FRL system remains adequate year-round.

Actionable takeaway: Create a simple spreadsheet listing every pneumatic device, its CFM requirement, and its rated PSI. Total the CFM for your three most commonly used tools simultaneously—this is your practical peak demand. Compare this to your compressor's rated output to determine if you have adequate compressed air supply.

Choosing the Right Filter Stage for Your Operations

Filter selection begins with understanding what contaminants exist in your incoming air and what level of cleanliness your downstream equipment requires.

Compressor discharge air naturally carries several contaminant types. Bulk water condenses as compressed air cools in the discharge line—this is the largest contaminant volume by far. Water vapor remains in the air unless removed by drying equipment. Oil aerosol particles from the compressor's internal lubrication escape with discharge air. Dust and particulate matter can enter if the compressor's intake filter is overdue for replacement.

Different tools demand different cleanliness levels. Paint application requires very fine filtration—typically 3 microns or better—because any visible particle creates a defect in the finish. Brake service requires moisture removal but can tolerate slightly higher particulate levels. General pneumatic tools like impact wrenches and grinders are forgiving and operate reliably even with 10-25 micron filtration.

Most automotive shops benefit from a two-stage filtration approach. Install a 25-40 micron coarse filter at the compressor discharge to handle bulk contamination and extend the life of downstream fine filters. Position a 3-5 micron fine filter closer to the point of use for applications requiring superior air quality.

Automatic drain mechanisms save maintenance time compared to manual drains. With manual drains, technicians must remember to open the valve daily to expel accumulated moisture. Automatic drains use float mechanisms or timers to expel water without operator intervention. Electronic drains with timers cost slightly more but ensure consistent drainage regardless of who's using the compressor.

Filter element replacement intervals depend on usage patterns and air cleanliness. A heavily used shop might replace filter elements every 2-3 months, while lighter use might extend intervals to 6+ months. Visual inspection is your best guide: if the element appears dark or clogged, it's time to change it.

Actionable takeaway: Identify your most pressure-sensitive or quality-critical application—likely paint work or precision tool operation. Use that application's cleanliness requirement to guide your fine filter selection, then add a coarse filter upstream to protect the fine filter element.

Selecting Regulators for Consistent Pressure Control

A regulator's primary job is maintaining consistent outlet pressure despite incoming pressure and demand variations. Selecting the right regulator requires matching its capacity to your airflow demands and understanding pressure control features available.

Regulators are rated by maximum CFM flow capacity. If you select a regulator undersized for your peak demand, outlet pressure will drop under heavy load. For example, a regulator rated for 50 CFM will struggle to maintain set pressure when you're drawing 70 CFM, resulting in tools that perform inconsistently or underpowered. Select a regulator rated for at least 125% of your peak simultaneous demand to ensure stable pressure during peak usage.

Pressure setting accuracy varies between regulator types. Basic adjustable regulators maintain pressure within +/- 5% of set point. High-precision regulators hold +/- 1-2%, which matters for applications like tire pressure measurement where accuracy affects safety and compliance. For general shop tools, +/- 5% is adequate. For precision work, invest in better regulators.

Gauge quality affects your visibility into actual downstream pressure. A quality pressure gauge with clear markings and a 0-160 PSI range gives you immediate feedback on system performance. Lower-cost gauges can be difficult to read accurately and may not track pressure changes responsively.

Some regulators include built-in gauge ports and relief valves. A relief valve automatically vents excess pressure if downstream demand drops suddenly, preventing pressure spikes that could damage equipment. This is a valuable safety feature in systems serving multiple tools.

For shops with varying pressure requirements—say, some tools needing 80 PSI and others 100 PSI—consider multiple FRL units configured in parallel for different pressure zones, or accept a compromise pressure that works adequately for all applications. The latter is simpler but may reduce performance on tools designed for higher pressure.

Locking adjustment screws prevent accidental (or unauthorized) pressure changes. This is particularly useful in training environments or multi-technician shops where consistency matters.

Actionable takeaway: Measure actual pressure drops across your current system under peak load conditions. If pressure drops more than 10 PSI from the compressor to the point of use, your regulator may be undersized or your lines may have excessive resistance—both issues that proper regulator selection can help address.

Lubrication Strategies for Pneumatic Tool Performance

Tool lubrication extends component life dramatically, but selecting the right lubrication approach requires understanding your specific equipment requirements.

Most automotive pneumatic tools—impact wrenches, die grinders, air chisels, ratchets—are designed for oil-lubricated operation. The small quantities of oil introduced into the airstream by a lubricator coat internal moving parts, reducing friction and wear. Without lubrication, these tools fail quickly due to internal corrosion and seal damage.

Lubricator-equipped FRL systems inject oil precisely as needed. Manual lubricators require periodic filling with ISO 46 or similar pneumatic tool oil—typically every few weeks depending on usage. Automatic drop-type lubricators inject one drop of oil per cycle, providing more consistent lubrication. Newer micro-mist lubricators create an oil aerosol that coats all internal surfaces evenly.

Not all equipment tolerates oil in compressed air. Brake system service tools and moisture-sensitive applications require oil-free air. If your shop performs both tool work (which benefits from oil) and precision applications (which require clean, dry air), plan separate FRL systems or use manual lubricators positioned immediately before the tools requiring lubrication rather than in the main air line.

Never substitute industrial oils for pneumatic-specific oils. Pneumatic tool oils are formulated to vaporize at operating temperatures and leave minimal residue. Industrial oils can gum up internal components and damage seals designed for specific oil viscosity.

Maintain your lubricator reservoir according to manufacturer specifications. A depleted oil reservoir means tools receive no lubrication despite the lubricator being installed. Many shops find that adding a visual sight glass to the lubricator—available as an aftermarket upgrade—helps technicians quickly identify when refilling is needed.

Actionable takeaway: Review your current tool failures. If tools are seizing or developing performance issues after moderate use, inadequate lubrication is likely the culprit. Verify that your lubricator's oil reservoir is full and that oil is actually reaching your tools.

Sizing Your FRL System for Maximum Efficiency

Proper sizing balances three competing factors: adequate capacity for peak demand, reasonable cost, and physical space in your installation location.

An undersized FRL system cannot deliver more air than your compressor produces, but it also introduces unnecessary pressure drop. Oversizing by more than 30% beyond your actual need wastes money without tangible benefit. Target sizing at 115-125% of your peak simultaneous demand.

Consider flow velocity when selecting FRL components. Air moving through filters and regulators at excessive velocity causes pressure drop and reduces efficiency. A well-sized system maintains reasonable pressure drop—typically less than 5 PSI across the entire FRL unit at peak flow. If pressure drop exceeds this, consider moving to larger capacity components.

Physical mounting location affects performance. Mount your FRL system as close as practical to the point of use to minimize pressure drop across connecting hoses. If your compressor sits in a separate room from your main work area, install an FRL unit near the compressor for bulk cleaning, then add a secondary fine filter and regulator closer to your tools.

Stackable modular FRL components offer flexibility. You can start with basic filtration and regulation, then add lubrication and additional filter stages as needs become clear. This staged approach spreads costs and lets you refine your setup based on real-world performance.

Tank and hose sizing matters as much as component selection. Undersized hoses introduce restriction and pressure drop. Follow manufacturer guidelines: typically, use at least 1/4" hose for systems up to 40 CFM, 3/8" for 40-100 CFM, and 1/2" for higher flow rates. Larger is always safer.

A receiver tank (storage tank) smooths pressure fluctuations and absorbs demand spikes. If your peak demand occasionally exceeds compressor output, a 20-30 gallon receiver tank helps maintain stable pressure during high demand periods. This is particularly valuable if you frequently run multiple high-demand tools simultaneously.

Actionable takeaway: Calculate the total volume and pressure of your current storage (compressor tank plus any receiver tanks), then compare this to your peak demand. If peak demand can be supplied entirely from stored air without pressure dropping more than 10 PSI, you have adequate capacity. If pressure drops more severely, you need either larger storage or a larger compressor.

Integration with Your Existing Pneumatic Infrastructure

Installing an FRL system into established infrastructure requires attention to connection types, material compatibility, and safety considerations.

Most industrial pneumatic components use standardized connection types. M-style couplers and plugs dominate automotive applications—these are industry-standard connections that ensure compatibility across equipment from different manufacturers. Verify that your new FRL system uses compatible connection types before purchasing. Mismatched connections require adapters, introducing additional pressure drop and potential leak points.

Existing hose sizing and condition directly affect new FRL system performance. Old hoses with internal corrosion or constrictions introduce restriction that undermines even perfectly sized new equipment. If your hoses are more than five years old or show visible deterioration, plan hose replacement as part of your FRL upgrade.

Thread tape (PTFE or Teflon tape) creates reliable leak-free connections on threaded ports. Apply two to three wraps in the direction of thread rotation before connecting components. This prevents moisture infiltration at connection points, which is crucial for maintaining air quality.

Pressure relief valves protect against overpressure conditions. Ensure your FRL system includes appropriate relief valve sizing, and verify that relief settings are correct for your equipment. A relief valve set too high doesn't protect your tools; set too low, it constantly vents air and wastes energy.

Isolation ball valves on either side of your FRL unit allow service and maintenance without depressurizing your entire compressor system. If you don't currently have these valves, add them as part of your FRL installation.

Test the entire system before connecting sensitive equipment. Run the compressor, set pressure to operating level, and verify stable pressure at the system outlet. Listen for leaks or whistling sounds that indicate connection problems. Only after confirming leak-free operation at stable pressure should you connect expensive tools or safety-critical equipment.

Actionable takeaway: Before installing new FRL components, sketch your current pneumatic piping layout and note all connection types. Cross-reference these against your planned FRL system to identify any adapter requirements or hose upgrades needed before installation day.

Our Comprehensive FRL Solutions for Professional Shops

We manufacture and source a complete range of FRL components designed specifically for automotive and industrial shop environments. Our systems are built for reliability and straightforward maintenance, which matters when your shop's operation depends on consistent air delivery.

Our filter elements are available in multiple micron ratings—25, 10, 5, and 3 microns—to match your specific cleanliness requirements. We pair these with automatic drain mechanisms that handle water removal without daily technician oversight. The combination delivers clean, dry air consistently throughout your operational day.

Our regulator selection includes both standard duty and precision variants. For general shop use, our adjustable regulators maintain stable pressure within +/- 5% and feature lockable adjustment mechanisms. For precision applications like tire inflation or brake work, our high-performance regulators achieve +/- 1% accuracy. All regulators include clear gauges and relief valve protection.

Lubrication components range from manual reservoir types for shops that prefer manual control to automatic micro-mist systems that deliver precise oil introduction with minimal operator attention. We stock ISO 46 pneumatic tool oil formulated specifically for tool protection and longevity.

Our pneumatic accessories line includes modular FRL units that stack for easy expansion, connection components with industry-standard compatibility, and hose assemblies pre-cut and pre-fitted for rapid installation. This modular approach lets you build exactly the system your shop requires without purchasing unnecessary components.

Actionable takeaway: Review the Milton Industries website to identify which FRL components match your shop's air demand rating and pressure requirements, then request sample specifications to compare against your current equipment.

Implementation and Maintenance Best Practices

Installing an FRL system correctly ensures optimal performance and longevity. Following established best practices prevents common installation mistakes that reduce efficiency or create safety issues.

Depressurize your entire system before beginning any work. Even residual pressure in lines or tanks can create safety hazards when disconnecting components. Open all isolation valves and allow air to vent completely.

Install the filter element first in the FRL sequence, closest to the compressor. The regulator follows the filter, then the lubricator. This arrangement ensures that incoming air is cleaned before regulation and lubricated after pressure is set. Reversing this sequence defeats filtration purposes and can damage the regulator with incoming contaminants.

Ensure all threaded connections are secure but not over-tightened. Over-torquing can crack ports or misalign components. Most connections require only hand-tight assembly plus a quarter turn with a wrench for final sealing.

Orient drain ports downward to ensure gravity assists water removal. If a drain port points sideways or upward, accumulated moisture won't drain effectively and contaminates downstream air.

After installation, run the system for 15-30 minutes at operating pressure before connecting critical tools. This allows any loose debris from new component interiors to pass through and be captured by the filter. If you skip this step, debris can damage tools or create reliability problems.

Establish a maintenance schedule: check lubricator oil level weekly, inspect filter elements monthly for visible dirt or clogging, and drain the receiver tank monthly to remove accumulated moisture. Document maintenance in a simple log so you track when components were last serviced.

Replace filter elements when they show visible dirt accumulation or when pressure drop exceeds manufacturer specifications. A clogged filter reduces airflow and stresses your compressor. Similarly, replace lubricator oil annually or more frequently if oil appears dark or contaminated.

Actionable takeaway: Create a laminated maintenance checklist posted next to your compressor system. Include weekly oil checks, monthly filter inspection, and annual element replacement reminders. Assign responsibility to specific technicians to ensure tasks don't get overlooked.

Getting Started with Milton Industries FRL Systems

Selecting the right FRL system for your shop requires matching components to your specific demand profile, cleanliness requirements, and pressure specifications. The process is straightforward when you have accurate baseline data.

Start by documenting your shop's current air consumption, pressure requirements, and any existing filtration issues you're experiencing. Gather manufacturer specifications for your primary tools to understand CFM and PSI demands. Note whether you perform applications requiring particularly clean air—paint work, brake service, precision measurement—because these drive your fine filtration requirements.

Compare your peak simultaneous demand against your compressor's rated output. If demand exceeds supply, undersizing an FRL system won't solve the underlying capacity problem—you'll need compressor capacity upgrades first. If supply exceeds demand, proceed with FRL selection based on your actual usage patterns.

Contact our technical team with your specifications. We'll recommend FRL component combinations that match your needs without oversizing. We provide detailed installation guidance and can answer integration questions about connecting new components to your existing infrastructure.

Our support extends beyond the initial purchase. We provide maintenance schedules, spare parts availability, and troubleshooting assistance to keep your system operating optimally throughout its service life. Many shops find that properly maintained FRL systems deliver reliable service for 5+ years before component replacement becomes necessary.

The investment in quality FRL equipment pays dividends through reduced tool failures, improved operational efficiency, and the confidence that your pneumatic tools will perform safely and reliably when you need them. We're here to help you make that investment count.

Actionable takeaway: Contact Milton Industries with your shop's compressor specifications and a list of your primary pneumatic tools. We'll provide tailored FRL recommendations with pricing, allowing you to move forward with implementation while supporting your operation's reliability and efficiency goals.
