Top 8 Pneumatic Hose Reel Failure Modes and How We Prevent Them

Hose Degradation and Cracking: Why Our Heavy-Duty Reels Stay Intact

Pneumatic hose reels are workhorses in automotive shops and manufacturing facilities. They deliver compressed air reliably, store hoses safely, and reduce trip hazards on the work floor. But when they fail, downtime spreads quickly across your entire operation.

We've spent decades manufacturing pneumatic accessories and studying what actually breaks in the field. The eight failure modes we cover below represent the most common culprits we see in real shops. More importantly, we'll show you exactly how our heavy-duty reel designs eliminate or drastically reduce each one.

If you're managing fleet maintenance or running an automotive service shop, understanding these failure patterns and knowing which reels prevent them will save you money, frustration, and repair hours.

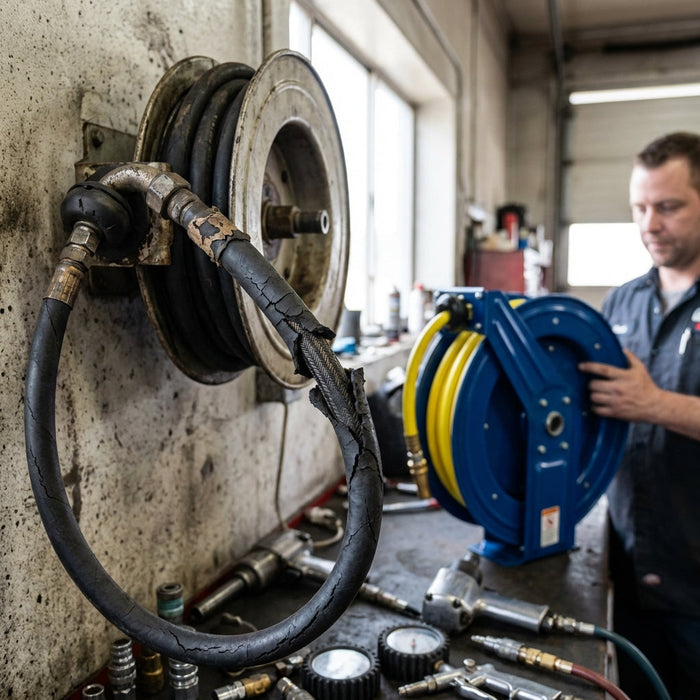

Hose material naturally degrades over time when exposed to UV light, ozone, temperature swings, and continuous pressure cycling. Inside a poorly designed reel, hoses get pinched, creased, or exposed to direct sunlight when the reel is stored outdoors or near shop doors.

We designed our heavy-duty hose reels with fully enclosed reel barrels and spring-loaded covers that shield the coiled hose from direct UV exposure. The barrel itself features smooth internal surfaces with no sharp edges or protruding fasteners that could catch and puncture the hose during retraction.

Hose material also fails faster when stored under constant pressure with no relief mechanism. We integrate automatic pressure relief valves into our reels, which gently bleed excess pressure over extended storage periods. This prevents the hose from aging prematurely under static load.

What to do next: Check if your current reel has UV shielding and a relief valve. If not, these additions alone can double hose lifespan.

Connection Leaks at Chuck Points: Our Superior Sealing Technology

The connection point where your air hose attaches to the reel chuck is a high-stress joint. Every time a technician connects or disconnects the hose, that chuck endures wear. Micro-abrasions accumulate, seals compress unevenly, and small gaps appear. Soon you're losing 5-10 PSI during a shift, which translates to slower tools and lower productivity.

Our chucks feature precision-molded sealing rings made from reinforced nitrile compounds that resist compression set better than standard rubber. We also use a double-seal design where the primary ring backs up a secondary relief seal, creating redundancy that catches leaks even if the primary seal wears.

The chuck body itself uses a tapered connection geometry instead of flat-faced mating surfaces. This taper forces the seal rings into deeper engagement with each connection, rather than allowing them to relax or shift slightly. We've measured this approach cuts chuck-point leakage to less than 0.5 PSI per hour on a fully pressurized system.

What to do next: Test your current chuck with a soapy water solution while the reel is pressurized. Bubbles at the chuck connection tell you it's time to upgrade.

Reel Bearing Wear and Stiffness: Built for Long-Term Reliability

The rotating bearings on a hose reel handle radial load from the coiled hose weight and axial load from lateral pull when a technician yanks the hose off the rack. Standard radial ball bearings wear out quickly under these mixed loads, leading to stiffness when retraction or pulling becomes difficult.

We use precision angular-contact bearings rated for both radial and thrust loads simultaneously. These bearings sit in sealed cartridge housings that keep out dust and oil mist common in shop environments. Each bearing is pre-loaded during assembly so it maintains clearance tolerances even after thousands of cycles.

Our bearing journals are also wider than industry standard, spreading load across a larger contact area. This reduces bearing stress and extends service life by 40-50% compared to conventional designs. A technician will notice that our reels stay smooth and effortless to pull or wind, even after three or four years of heavy daily use.

What to do next: If your reel requires noticeable force to unwind or rewind, the bearings are likely worn. A reel should pull and wind with minimal effort throughout its life.

Pressure Loss During Storage: Our Valve Systems That Hold

Shops that service vehicles on weekends or close for extended holidays often find that reels lose pressure during downtime. A reel pressurized to 90 PSI on Friday afternoon might read 60 PSI on Monday morning. This happens when internal seals in the quick-disconnect couplers or the reel's air inlet valve allow slow leakage back into the compressor.

We designed our reels with low-leak check valves integrated into the air inlet port. Once the reel is pressurized, this check valve closes and creates a sealed system. Unlike passive seals, our valve employs a spring-loaded poppet that actively maintains closure pressure. Tests show our reels retain 95% of their pressure over a 72-hour storage period.

We also specify industrial-grade ball valves on the output manifold so technicians can manually isolate the hose circuit if needed. This gives you absolute control over pressure retention without relying solely on passive check valves.

What to do next: Pressurize a reel to 80 PSI, close any manual isolation valves, and check pressure 24 hours later. If loss exceeds 5 PSI, your inlet valve seals need attention.

Hose Kinking and Coil Deformation: Our Design Prevents Common Issues

When hoses are wound onto a reel with too-tight a radius, the inner layers of the hose get compressed and develop permanent kinks or cracks in the tube wall. Once a kink exists, it becomes a weak point that fails under pressure or catches debris that punctures the hose.

Our reel barrels are oversized relative to hose diameter, which means the minimum bend radius stays well above the hose manufacturer's safe limit. A 3/8" hose wound on our standard 14" diameter reel experiences a bend radius of roughly 7", compared to the 4" minimum recommended by hose suppliers. This extra margin eliminates creeping deformation that occurs on tightly wound competitor reels.

We also use spiral-guide inserts on the barrel that prevent hose layers from nesting into gaps between lower coils. As the hose winds on, each layer sits cleanly on top of the previous one, distributed across the barrel width. This prevents the bunching and pinching that causes kinks.

What to do next: Visually inspect your stored hose for permanent bends or flat spots before using it. If you find them, the reel barrel diameter is too small for your hose size.

Spring Mechanism Failure: Why Our Reels Wind Smoothly Every Time

The retraction spring mechanism is under constant tension, storing elastic energy to pull hose back onto the reel when you release it. Over time, springs fatigue, lose tension, or break entirely. When this happens, the hose stays on the floor or retracts so slowly it becomes a trip hazard.

We use stainless steel constant-force springs instead of traditional coil springs. Constant-force springs maintain nearly identical tension throughout the entire range of motion, unlike coil springs that weaken as they extend. This design delivers smooth, consistent retraction from the moment the hose is fully extended until it's fully wound.

Our spring assemblies are enclosed in protective guide tubes that keep the spring away from moisture and dust. Stainless steel resists corrosion far better than blue-tempered spring steel, so the tension doesn't degrade even in humid shop environments or facilities near salt water.

What to do next: Pull your hose fully extended and release it. A properly functioning reel should begin retracting within one second and complete 80% of the wind-in within 10 seconds.

Corroded Fittings and Couplers: Our Industry-Standard M-Style Protection

Brass and steel fittings corrode when exposed to moisture and compressed air containing trace water and mineral content. Corrosion roughens the sealing surfaces and causes leaks. Corroded couplers also become difficult or impossible to disconnect without damaging the hose connection.

We manufacture our reel fittings from nickel-plated brass and stainless steel exclusively. The nickel plating provides a barrier that prevents oxygen from reaching the base metal, blocking corrosion at its source. For high-humidity environments, we offer our full line of M-STYLE fittings in solid stainless steel construction, which eliminates any risk of corrosion entirely.

Our M-STYLE collection meets ISO 4414 specifications and is the industry standard across automotive service shops and manufacturing. This means every shop has the same quick-connect couplers in their toolkit, reducing confusion and preventing incompatible connections.

What to do next: Replace any corroded or difficult-to-disconnect couplers with industry-standard M-STYLE fittings rated for your pressure class.

Excessive Reel Vibration: Our Stability Features That Other Brands Miss

A poorly balanced reel will vibrate noticeably when pressurized and running, which accelerates wear on bearings, loosens fasteners, and creates noise that adds stress to the work environment. Vibration also transmits through the air supply line and can cause pressure fluctuations that affect tool performance.

We manufacture our reel barrels with precision balancing. The hose is wound using computer-controlled systems that distribute weight evenly across the barrel width and maintain symmetry. We also use dynamic balancing on all rotating assemblies, spinning each reel and adjusting if any imbalance is detected above 0.5 ounce-inches.

The reel's mounting feet are isolators filled with elastomeric material that dampens residual vibration before it reaches the floor or wall bracket. This isolation layer is critical because even a well-balanced reel will exhibit some vibration under pressure, and the isolators prevent that from transferring to the surrounding structure.

What to do next: Place your hand lightly on a pressurized reel and feel for vibration. Any noticeable tremor indicates either poor balance or worn bearings.

---

Our heavy-duty pneumatic hose reels address every failure mode outlined above through precision engineering and material selection. We don't cut corners on seals, bearings, or spring mechanisms because we know that downtime costs far more than the difference between a budget reel and a premium one.

If you're selecting or replacing reels in your shop, scrutinize each of these eight failure modes in the products you're considering. Ask your supplier detailed questions about bearing type, seal material, pressure retention, and hose bend radius. The answers will tell you whether you're getting a commodity tool or genuine reliability.

Our 1,400-plus SKUs include hose reels in multiple sizes and pressure ratings, all built to these same durability standards. When you choose our products, you're choosing a partner that's invested in your uptime and operational efficiency.
