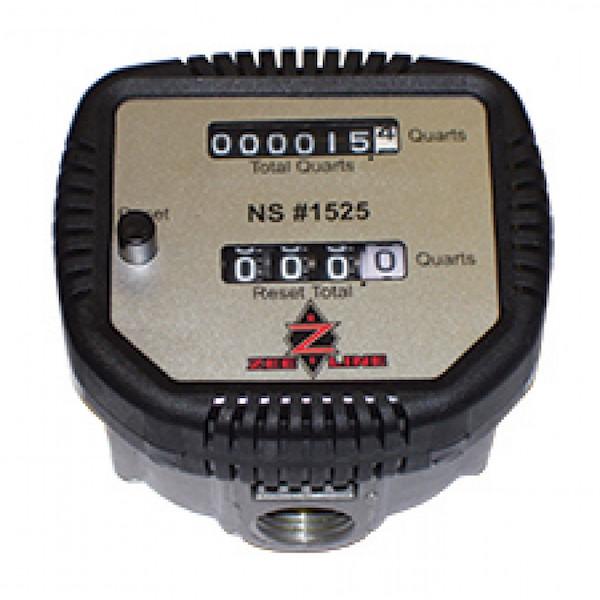

ZE1525AR - In-Line Quart Meter

ZE1525AR - In-Line Quart Meter

ZE1525AR - In-Line Quart Meter

Zeeline by Milton®

Part #: ze1525ar

$295.96

Save:

Quantity

Processing & Handling Time: Orders are processed within 24-48 business hours before shipping. Business hours exclude weekends and holidays.

ZE1525AR - In-Line Quart Meter

Features:

Dispenses Quarts
Totalizes Quarts

Specifications

Dispenses: Quarts
Totalizes: Gallons
Units - Graduation: 1 decimal
Inlet/Outlet: 1/2" NPT
Min/Max Flow Rate: 0.25/4.0 GPM
Min/Max Temp: -10° F/110° F
Min/Max PSI: 5/1000 PSI
Accuracy: ±0.65%
Face Diameter/Width: 3 1/2"
Nozzle: 1/2" Flex Hose, Auto Non-Drip (ZE1315A)
Swivel: 1/2" NPT (ZE1572GSW)

Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range :

Features:

Dispenses Quarts
Totalizes Quarts

Specifications

Dispenses: Quarts
Totalizes: Gallons
Units - Graduation: 1 decimal
Inlet/Outlet: 1/2" NPT
Min/Max Flow Rate: 0.25/4.0 GPM
Min/Max Temp: -10° F/110° F
Min/Max PSI: 5/1000 PSI
Accuracy: ±0.65%
Face Diameter/Width: 3 1/2"
Nozzle: 1/2" Flex Hose, Auto Non-Drip (ZE1315A)
Swivel: 1/2" NPT (ZE1572GSW)
