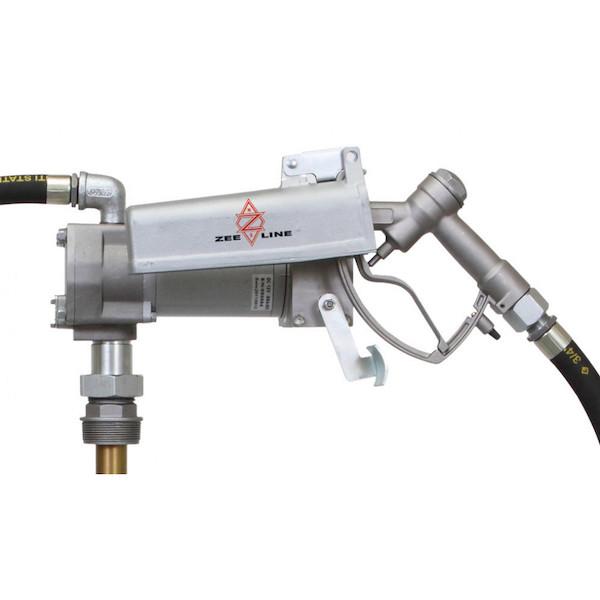

ZE945 - 12 Volt Fuel Pump (20 GPM)
Save:
ZE945 - 12 Volt Fuel Pump (20 GPM)

ZE945 - 12 Volt Fuel Pump (20 GPM)

Zeeline by Milton®

Part #: ze945
$1,130.78
$799.08
Save:

Quantity

Processing & Handling Time: All products are shipped from the USA. Orders are processed within 24-48 business hours before shipping. Business hours exclude weekends and holidays.

ZE945 - 12 Volt Fuel Pump (20 GPM)

Features:

  • Aluminum die cast construction
  • UL approved explosion proof motor with sintered powered gears
  • NBR seals
  • 34" two piece suction tube designed to fit 55 gallon drums
  • Positive displacement
  • Duty cycle: 30 minutes ON; 30 minutes OFF
  • Removable wire mesh strainer for easy cleaning without disassembling the pump
  • Wetted components are: aluminum, steel, cast iron, nylon, NBR, zinc, FKM, polypropylene, and PVC

Specifications:

  • Max Flow Rate: 20 GPM
  • Motor: 12 Volt DC 1/7-HP
  • Inlet: 1" NPT
  • Outlet: 1" NPT
  • Hose: 1" x 12' Anti-Static
  • Power Cord: 15' (13ga)
  • Draw: 15-amp
  • Nozzle: Manual
Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range :

Features:

  • Aluminum die cast construction
  • UL approved explosion proof motor with sintered powered gears
  • NBR seals
  • 34" two piece suction tube designed to fit 55 gallon drums
  • Positive displacement
  • Duty cycle: 30 minutes ON; 30 minutes OFF
  • Removable wire mesh strainer for easy cleaning without disassembling the pump
  • Wetted components are: aluminum, steel, cast iron, nylon, NBR, zinc, FKM, polypropylene, and PVC

Specifications:

  • Max Flow Rate: 20 GPM
  • Motor: 12 Volt DC 1/7-HP
  • Inlet: 1" NPT
  • Outlet: 1" NPT
  • Hose: 1" x 12' Anti-Static
  • Power Cord: 15' (13ga)
  • Draw: 15-amp
  • Nozzle: Manual
