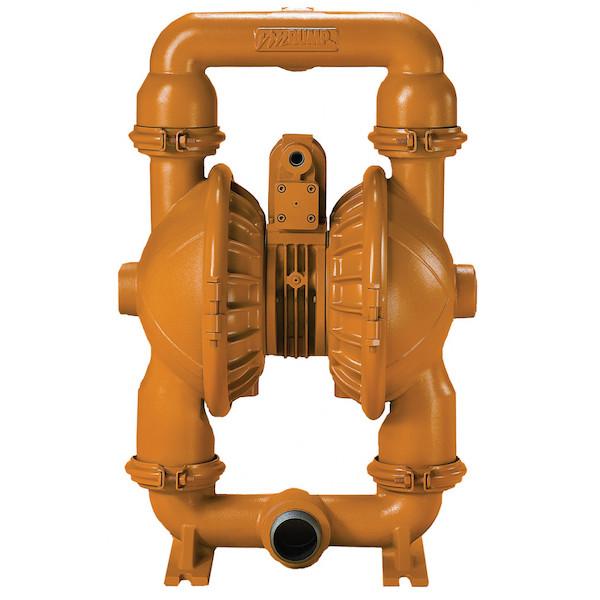

ZE1043 - 2" Double Diaphragm Pump

Zeeline by Milton®

Part #:

$2,488.64

Save:

Quantity

Processing & Handling Time: Orders are processed within 24-48 business hours before shipping. Business hours exclude weekends and holidays.

ZE1043 - 2" Double Diaphragm Pump

Warning! This item is not suitable for flammable liquids

Specifications

Air Ratio: 1:1
Fluid Inlet/Outlet: 2" NPT
Max Flow: 155 GPM
Air Inlet Port: 1/2" NPT
Body Construction: Aluminum
Diaphragms: Buna N
Balls: Buna N
Seats: Buna N
UL Listed: No
Air Consumption: 100CFM @ 100PSI
Bolt Pattern: 10.00" X 9.00"
Height: 26.500"
Max Particle Size: 1/4"
Suction Lift- Dry: 20"
Suction Lift- Wet: 25"

Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range :
