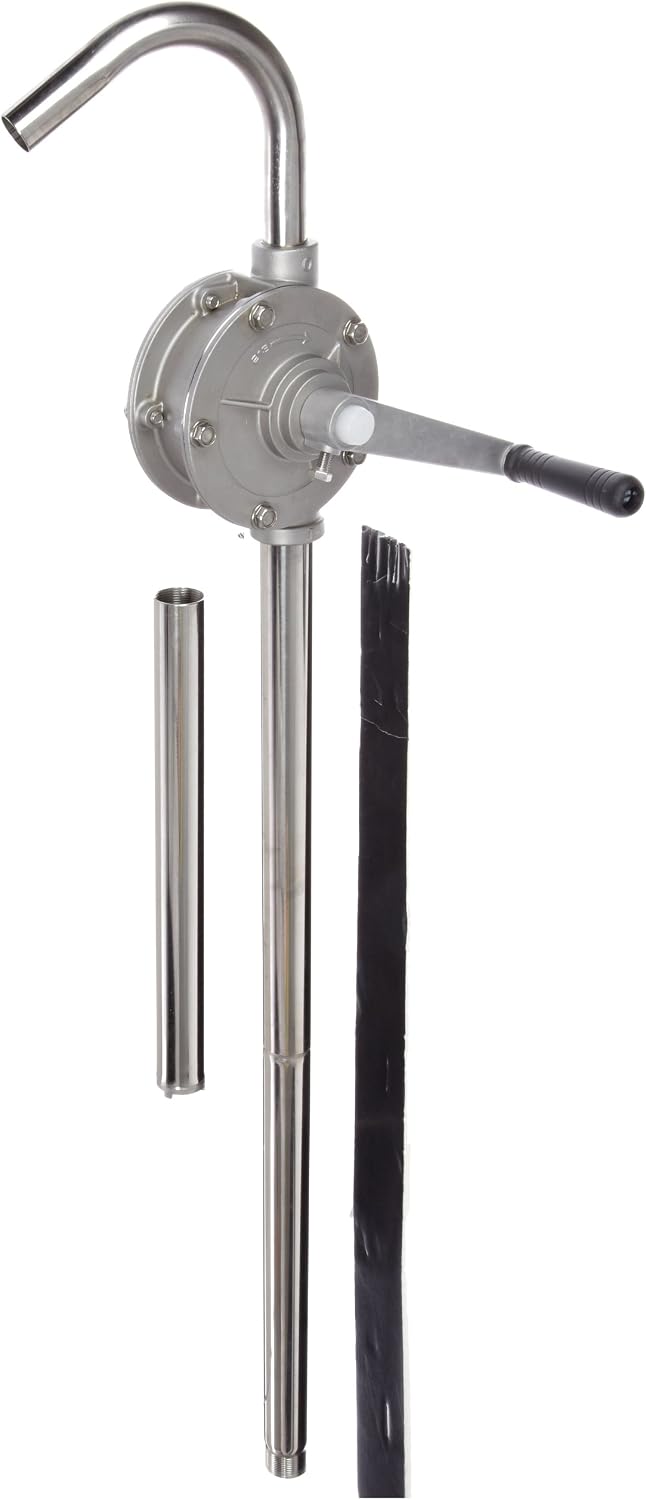

Action Pump 219 Stainless Steel Rotary Pump with PTFE Vanes
Save:
Action Pump 219 Stainless Steel Rotary Pump with PTFE Vanes

Action Pump 219 Stainless Steel Rotary Pump with PTFE Vanes

Milton® Industries Inc.

Part #: 219
  • Rotary drum pump for dispensing chemicals
  • Hand-operated rotary lever action
  • 304 Stainless steel body and tubes for resistance to chemicals and corrosion, with a PTFE seal for resistance to chemicals
  • Flow rate of 10 gpm at 135 rpm
  • 1" female NPT suction port and 3/4" female UNF discharge port
$210.00
Save:

Quantity

Processing & Handling Time: All products are shipped from the USA. Orders are processed within 24-48 business hours before shipping. Business hours exclude weekends and holidays.

Action Pump 219 Stainless Steel Rotary Pump with PTFE Vanes

This Action Pump 219 hand-operated rotary pump has a body and tubes made of 304 stainless steel for resistance to chemicals and corrosion, and is suitable for dispensing or transferring chemicals in a wide variety of applications. It is capable of dispensing 10 gallons per minute (gpm) at 135 revolutions per minute (rpm) of its hand-operated rotary lever. Its PTFE (polytetrafluoroethylene) seal resists chemicals. This rotary drum pump has a 1" female National Pipe Taper (NPT) threaded suction port and a 3/4" Unified Fine (UNF) threaded discharge port. It is suitable for chemical dispensing or transferring chemicals in industrial or commercial applications that make use of 15, 20, and 55 gallon chemical drums.

Specifications

Pump Rotary drum pumpMaterials304 stainless steel body and tubes; PTFE seal. Flow rate10 gpm at 135 rpm. Suction port 1" female NPT. Discharge port 3/4" female UNF. Maximum temperature140 degrees F. Maximum liquid viscosity5,000 SSU. For use with15, 20, and 55 gallon drumsWeight13 lb. Overall length: 53"; Suction hose: 40"

Pumps use mechanical action to move liquids, gases, or slurries (solids suspended in a liquid or gas). The mechanical action is categorized as either positive displacement (PD) or kinetic. PD pumps capture and release discrete amounts of flow into a chamber and then force it out. Some examples of PD pumps are fuel and oil pumps in cars, pumps in hydraulic systems, and bicycle pumps. Kinetic pumps move liquids, gases, or slurries by transferring energy from the pump's movement to the flow. They use an impeller to draw the flow in, add energy to the flow, and move it through a volute (a spiral funnel through which the flow moves), and into the system. Some examples of kinetic pumps include centrifugal (the most common pump in industrial applications), in-line pumps, sump pumps, and suction pumps. Energy sources for all types of pumps include wind power, manual operation, electricity, and gasoline or diesel fuel.

Action Pump manufactures drum and pail pumps and grease, oil, and lubrication products. The company, founded in 1981, is headquartered in Cary, IL.

What's in the Box?
  • 219 rotary drum pump
  • 40" suction tube assembly
  • 2" bung adapter
  • Discharge spout
Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range :

This Action Pump 219 hand-operated rotary pump has a body and tubes made of 304 stainless steel for resistance to chemicals and corrosion, and is suitable for dispensing or transferring chemicals in a wide variety of applications. It is capable of dispensing 10 gallons per minute (gpm) at 135 revolutions per minute (rpm) of its hand-operated rotary lever. Its PTFE (polytetrafluoroethylene) seal resists chemicals. This rotary drum pump has a 1" female National Pipe Taper (NPT) threaded suction port and a 3/4" Unified Fine (UNF) threaded discharge port. It is suitable for chemical dispensing or transferring chemicals in industrial or commercial applications that make use of 15, 20, and 55 gallon chemical drums.

Specifications

Pump Rotary drum pumpMaterials304 stainless steel body and tubes; PTFE seal. Flow rate10 gpm at 135 rpm. Suction port 1" female NPT. Discharge port 3/4" female UNF. Maximum temperature140 degrees F. Maximum liquid viscosity5,000 SSU. For use with15, 20, and 55 gallon drumsWeight13 lb. Overall length: 53"; Suction hose: 40"

Pumps use mechanical action to move liquids, gases, or slurries (solids suspended in a liquid or gas). The mechanical action is categorized as either positive displacement (PD) or kinetic. PD pumps capture and release discrete amounts of flow into a chamber and then force it out. Some examples of PD pumps are fuel and oil pumps in cars, pumps in hydraulic systems, and bicycle pumps. Kinetic pumps move liquids, gases, or slurries by transferring energy from the pump's movement to the flow. They use an impeller to draw the flow in, add energy to the flow, and move it through a volute (a spiral funnel through which the flow moves), and into the system. Some examples of kinetic pumps include centrifugal (the most common pump in industrial applications), in-line pumps, sump pumps, and suction pumps. Energy sources for all types of pumps include wind power, manual operation, electricity, and gasoline or diesel fuel.

Action Pump manufactures drum and pail pumps and grease, oil, and lubrication products. The company, founded in 1981, is headquartered in Cary, IL.

What's in the Box?
  • 219 rotary drum pump
  • 40" suction tube assembly
  • 2" bung adapter
  • Discharge spout
