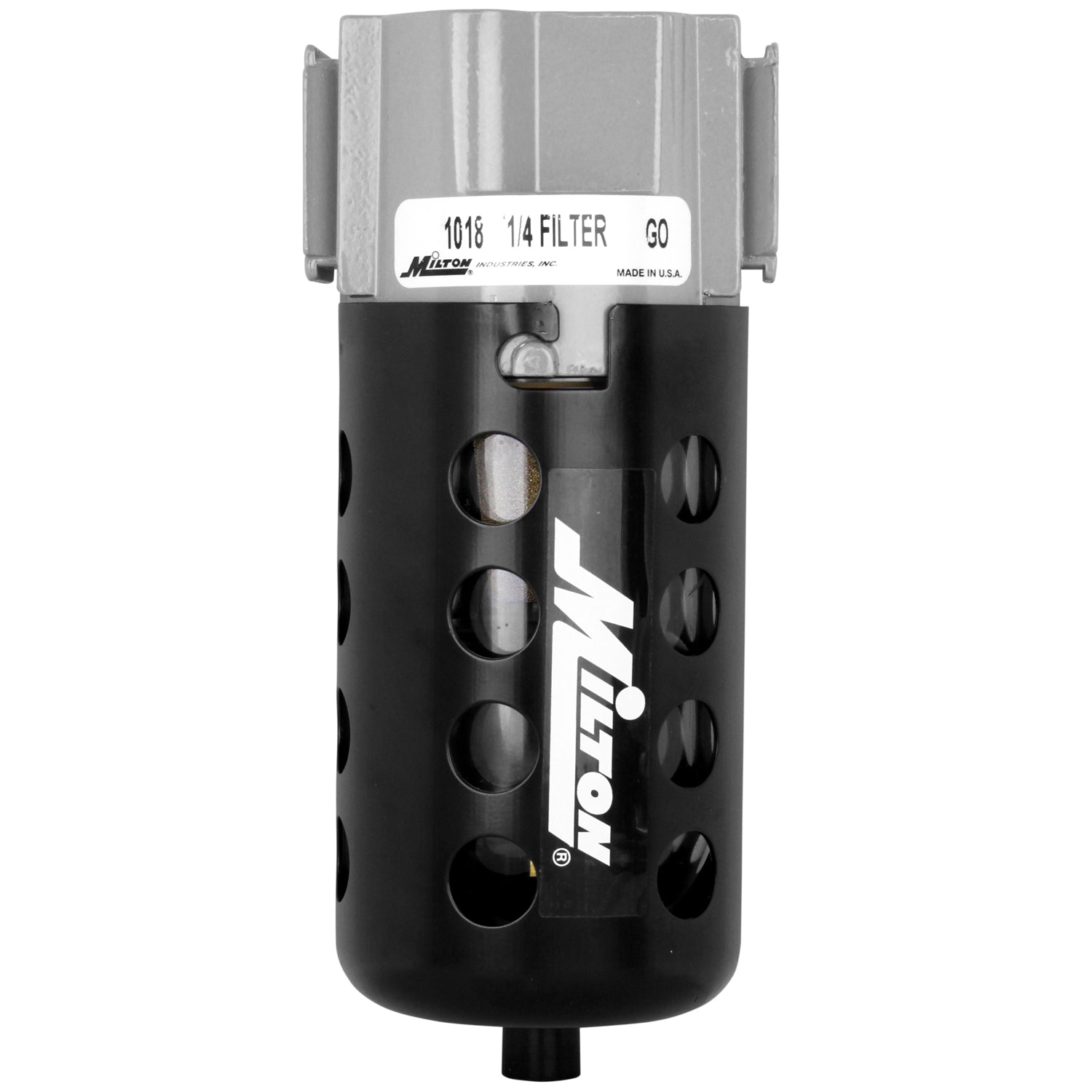

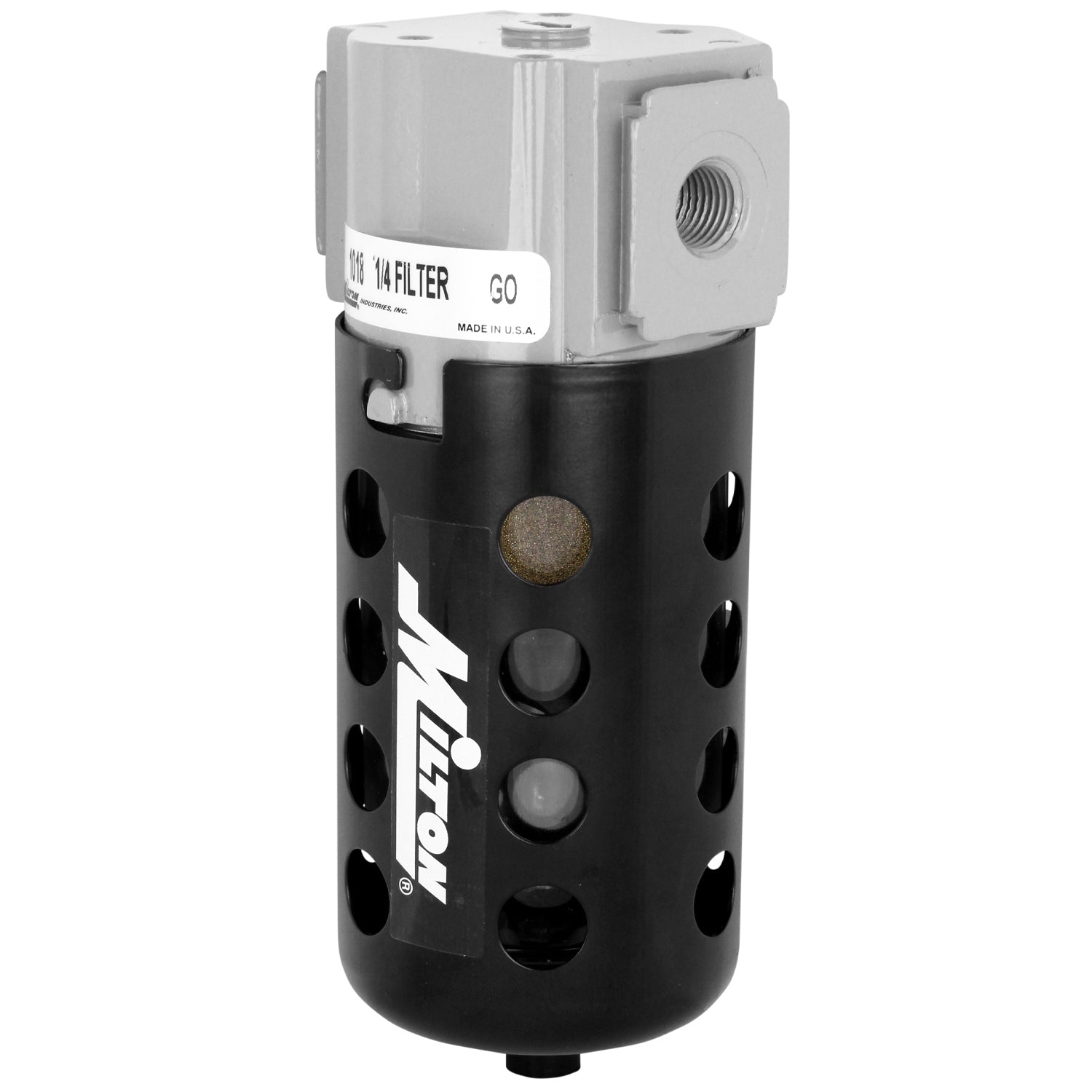

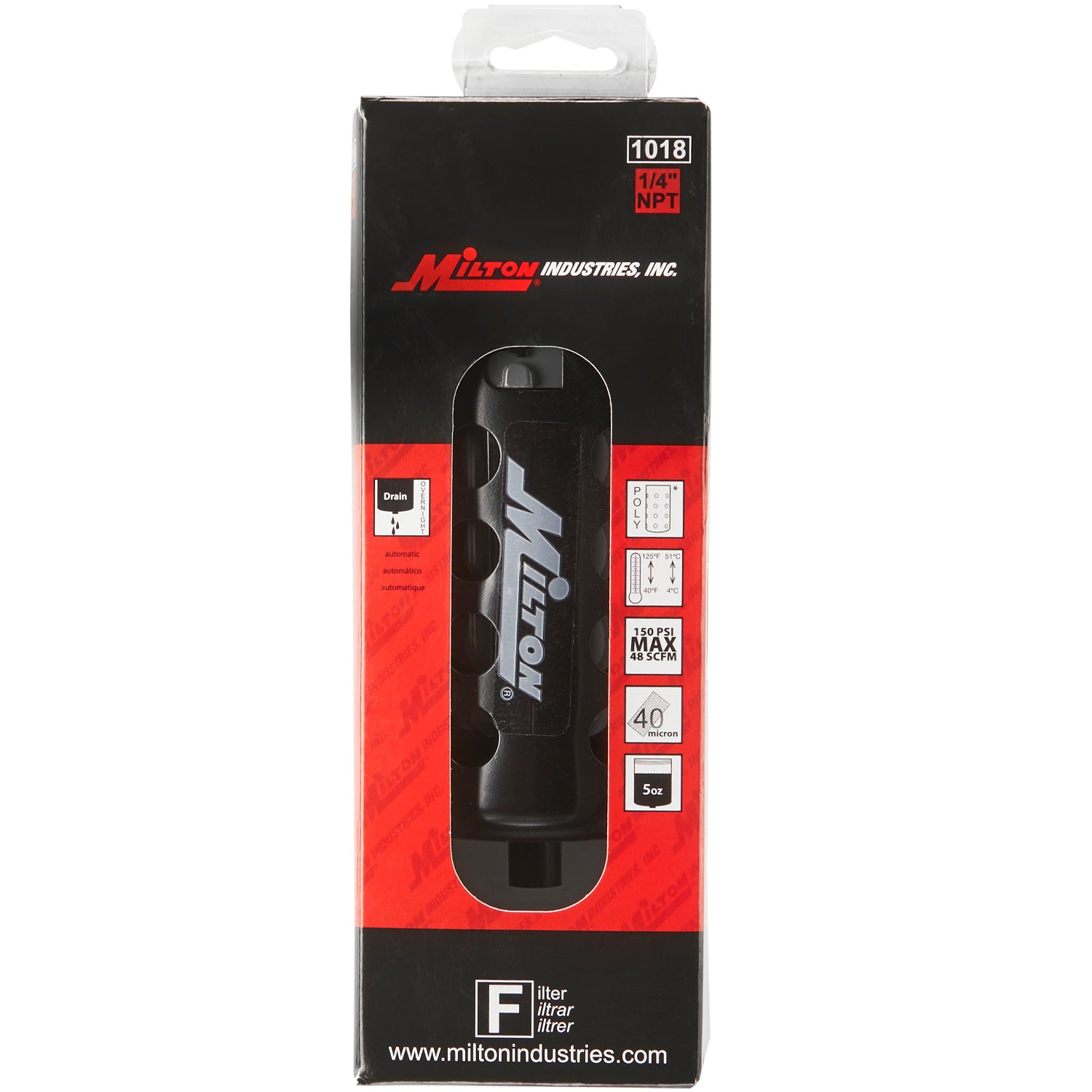

1/4" NPT Polycarbonate Micro Filter

Milton Industries Inc.®

Part #: 1018
UPC Code: 30937110183
Number of Items: 1
  • MAXIMUM PRESSURE OF 150 PSI: Ensures reliable performance in various applications.
  • HIGH AIRFLOW CAPACITY: Maximum of 48 SCFM at 100 PSI, suitable for diverse air flow requirements.
  • SINTERED BRONZE ELEMENTS: Permanent and cleanable for long-term filtration efficiency.
  • EASY INSTALLATION: Install upstream from regulators for effective air flow management.
  • MODULAR UNIT SETUP: Can be configured as a modular unit for versatile installation options.
  • Micron filter size: 40 micron bronze filter
  • 5 oz polycarbonate bowl capacity
$36.71
$61.18
Save: 40%

Quantity

Processing & Handling Time: Orders are processed within 24-48 business hours before shipping. Business hours exclude weekends and holidays.

1/4" NPT Polycarbonate Micro Filter

This 1/4" NPT Milton ® micro filter is supplied with a pre-assembled internal automatic overnight drain, which will operate when an air supply is shut down or when liquid has gathered in the filter bowl. The included 3 stage baffle system offers exceptional moisture removal. This micro filter includes a porous bronze sintered 40 micron filter element which allows less pressure drops and longer cleaning intervals. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and long element life. This polycarbonate bowl has a capacity of 5 ounces and is protected by a safety metal bowl guard. Maximum of 150 PSI and 48 SCFM.

Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range :

This 1/4" NPT Milton ® micro filter is supplied with a pre-assembled internal automatic overnight drain, which will operate when an air supply is shut down or when liquid has gathered in the filter bowl. The included 3 stage baffle system offers exceptional moisture removal. This micro filter includes a porous bronze sintered 40 micron filter element which allows less pressure drops and longer cleaning intervals. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and long element life. This polycarbonate bowl has a capacity of 5 ounces and is protected by a safety metal bowl guard. Maximum of 150 PSI and 48 SCFM.
