ZE1035 - 1/2

Save:

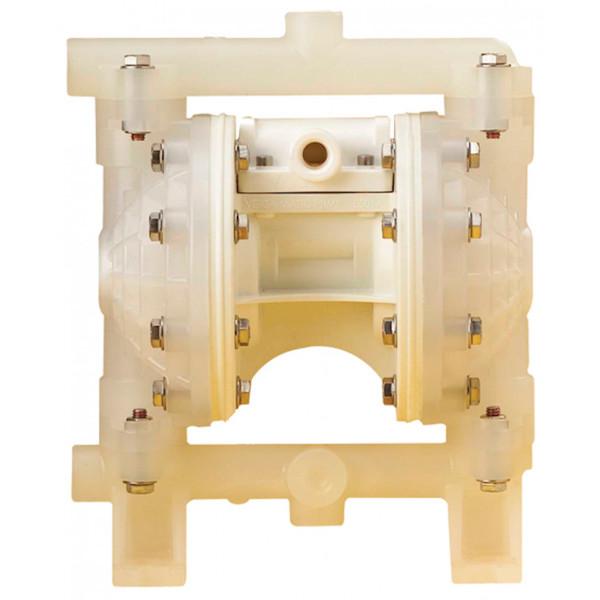

ZE1035 - 1/2" Double Diaphragm Pump

Zeeline by Milton®

Part #: ze1035

$827.81

Save:

Quantity

Processing & Handling Time: Orders are processed within 24-48 business hours before shipping. Business hours exclude weekends and holidays.

ZE1035 - 1/2" Double Diaphragm Pump

Specifications

Air Ratio: 1:1
Fluid Inlet/Outlet: 1/2" NPT
Max Flow: 14 GPM
Air Inlet Port: 1/4" NPT
Body Construction: Polypropylene
Diaphragms: Buna N
Balls: Acetal
Seats: Polypropylene
Ul Listed: No
Air Consumption: 16CFM @ 100 PSI
Bolt Pattern: 4.375" X 6.75"
Height: 10.600"
Max Particle Size: 1/8"
Suction Lift- Dry: 15'
Suction Lift-Wet: 25'

Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range :

Specifications

Air Ratio: 1:1
Fluid Inlet/Outlet: 1/2" NPT
Max Flow: 14 GPM
Air Inlet Port: 1/4" NPT
Body Construction: Polypropylene
Diaphragms: Buna N
Balls: Acetal
Seats: Polypropylene
Ul Listed: No
Air Consumption: 16CFM @ 100 PSI
Bolt Pattern: 4.375" X 6.75"
Height: 10.600"
Max Particle Size: 1/8"
Suction Lift- Dry: 15'
Suction Lift-Wet: 25'
