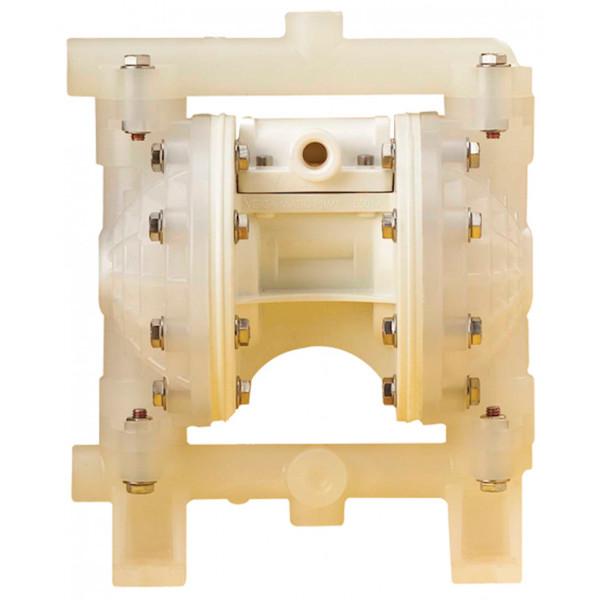

ZE1037 - 1/2" Double Diaphragm Pump

Zeeline by Milton®

Part #: ze1037

$1,028.38

Save:

Quantity

Processing & Handling Time: Orders are processed within 24-48 business hours before shipping. Business hours exclude weekends and holidays.

ZE1037 - 1/2" Double Diaphragm Pump

Features:

(2) 1/2" x 4' oil hose (ZE2204)
Air Filter/Regulator (ZE1559A2-ASSY)
Warning! This item is not suitable for flammable liquids

Specifications:

Air Ratio: 1:1
Fluid Inlet/Outlet: 1/2" NPT
Max Flow: 14 GPM
Air Inlet Port: 1/4" NPT
Body Construction: Polypropylene
Diaphragms: Buna N
Balls: Acetal
Seats: Polypropylene
Ul Listed: No
Air Consumption: 16CFM @ 100 PSI
Bolt Pattern: 4.375" X 6.75"
Height: 10.600"
Max Particle Size: 1/8"
Suction Lift-Dry: 15'
Suction Lift- Wet: 25'

Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range :

Features:

(2) 1/2" x 4' oil hose (ZE2204)
Air Filter/Regulator (ZE1559A2-ASSY)
Warning! This item is not suitable for flammable liquids

Specifications:

Air Ratio: 1:1
Fluid Inlet/Outlet: 1/2" NPT
Max Flow: 14 GPM
Air Inlet Port: 1/4" NPT
Body Construction: Polypropylene
Diaphragms: Buna N
Balls: Acetal
Seats: Polypropylene
Ul Listed: No
Air Consumption: 16CFM @ 100 PSI
Bolt Pattern: 4.375" X 6.75"
Height: 10.600"
Max Particle Size: 1/8"
Suction Lift-Dry: 15'
Suction Lift- Wet: 25'
