ZE945 – 12-Volt Electric Diesel Pump Kit (16 GPM)

*For use with Diesel Fuel only!

Features:

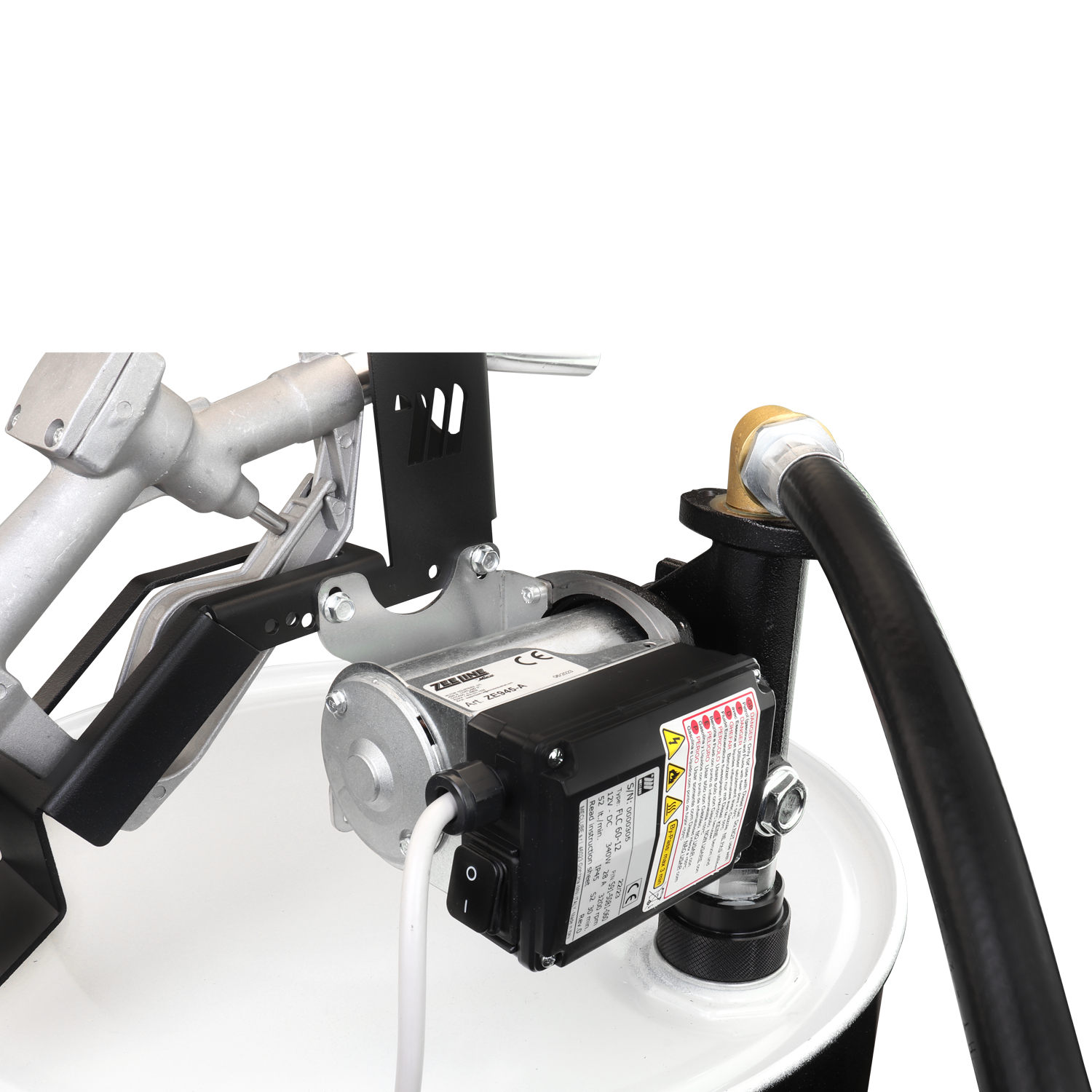

• Built to Last: The main pump body is constructed of durable cast iron making it durable and able to handle daily use.

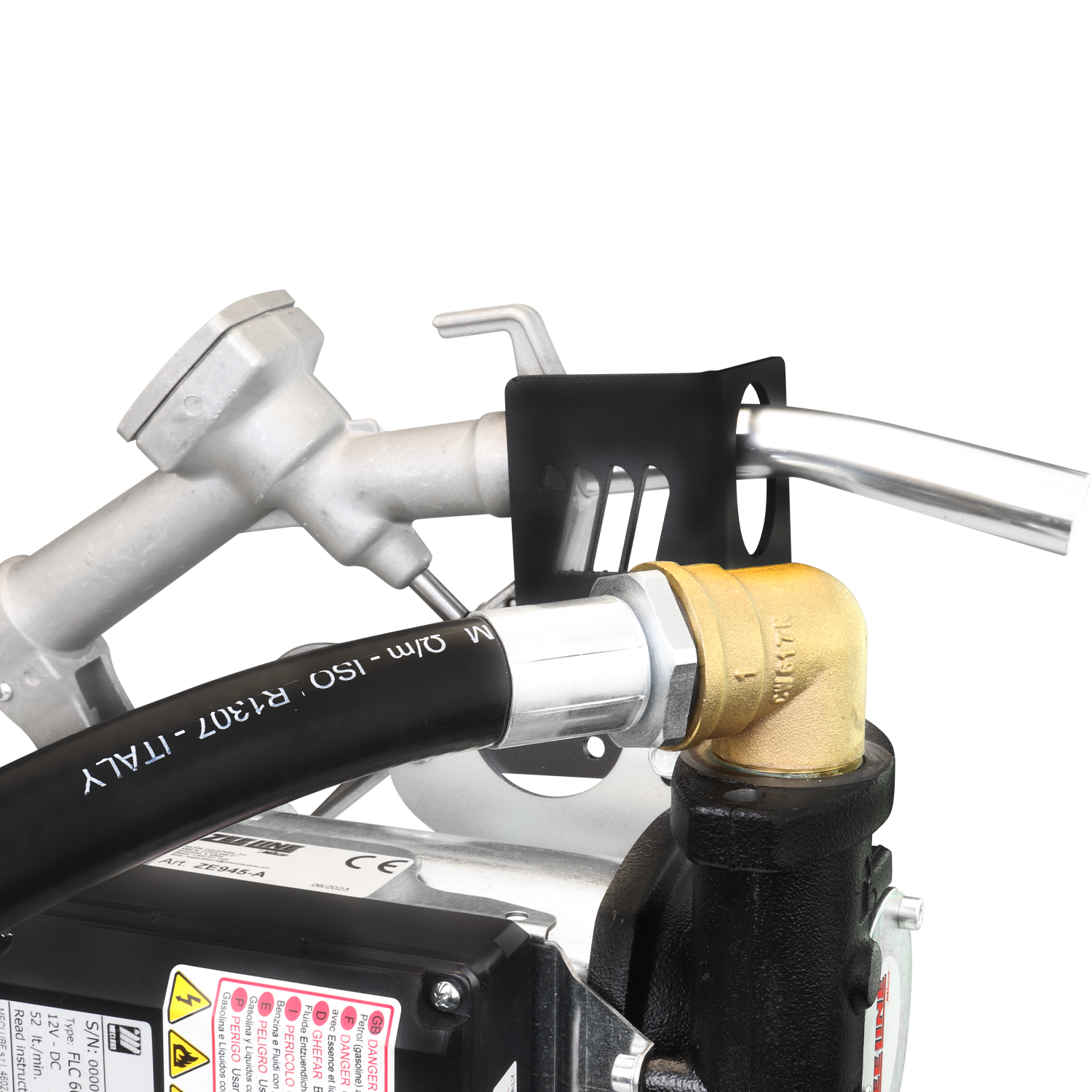

• Long Reaching Dispensing Hose: The included 13-foot delivery hose for maximum fueling distance.
• Minimal Setup Required: The pump motor is ready to operate out of the box, install the delivery hose, suction tube, nozzle, and bracket; then pump away.

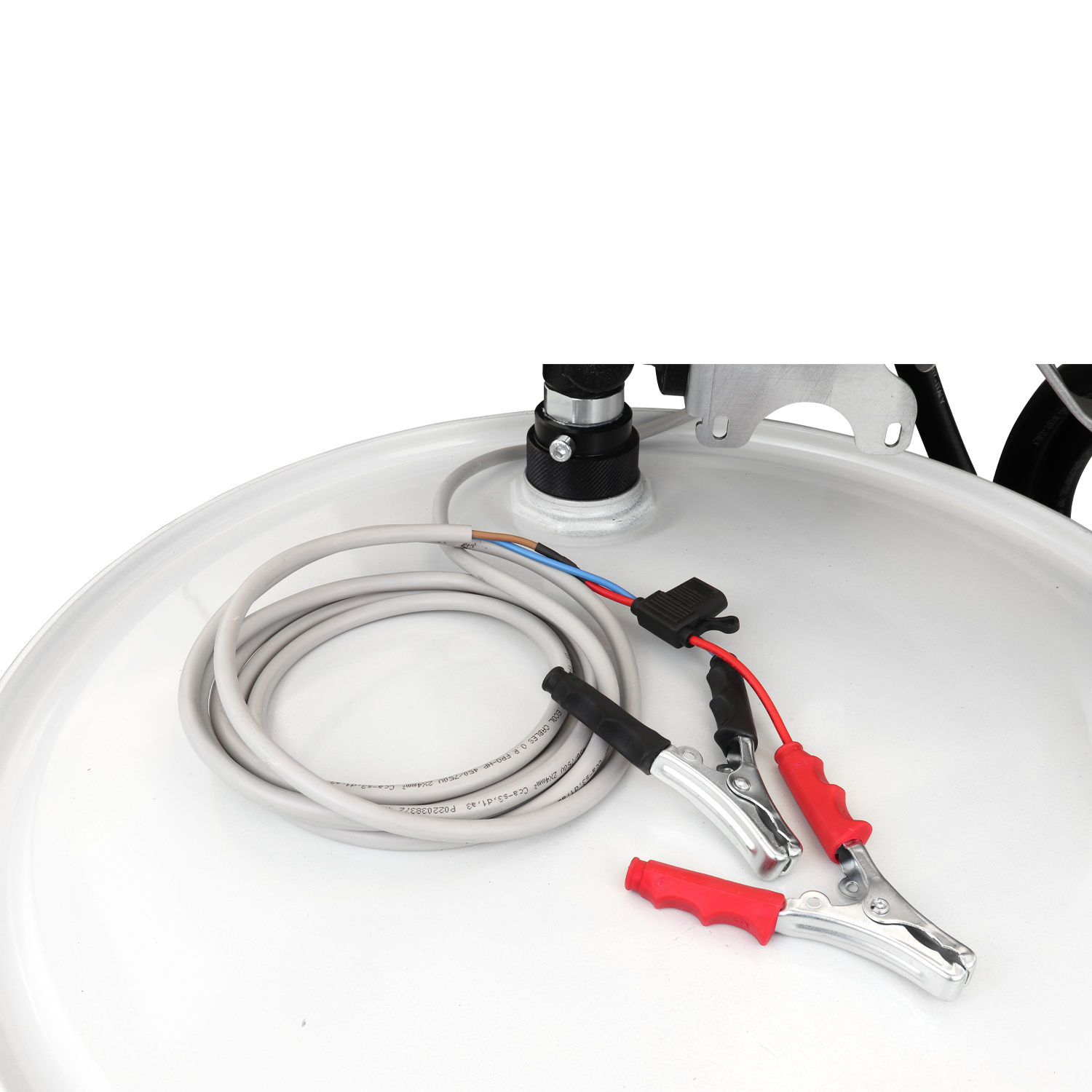

• Simple operation: Connect the power and flip the on/off switch.
• Built with safety in mind: Fuel hose includes an anti-static wire for safer operation.

Specifications:

• 1” NPT Threads
• Self-Priming Pump
• Power: 336 W
• Voltage: 12 V
• Max suction height: 10-foot
• Vane material: Resin
• Impeller material: Sintered Steel

Description:

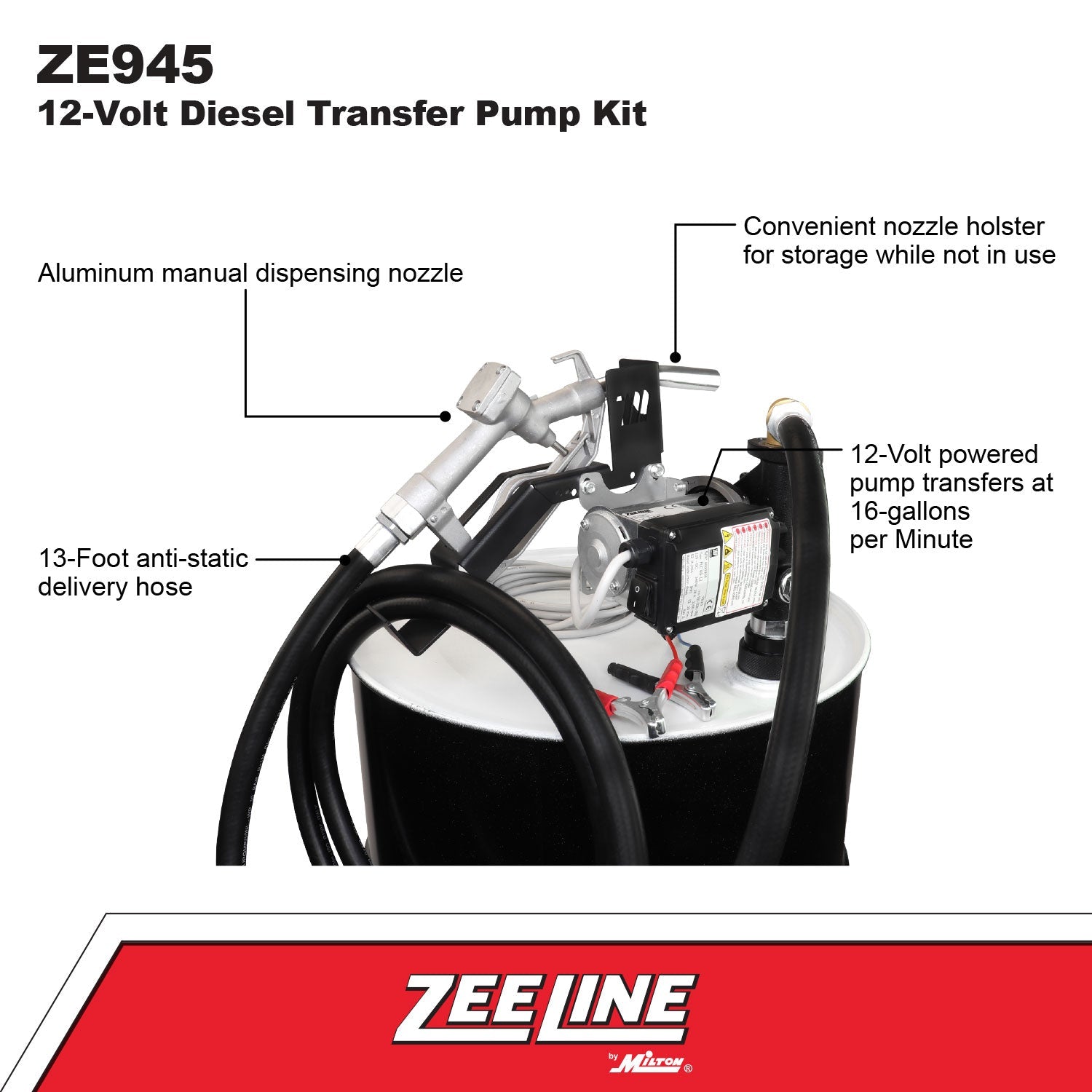

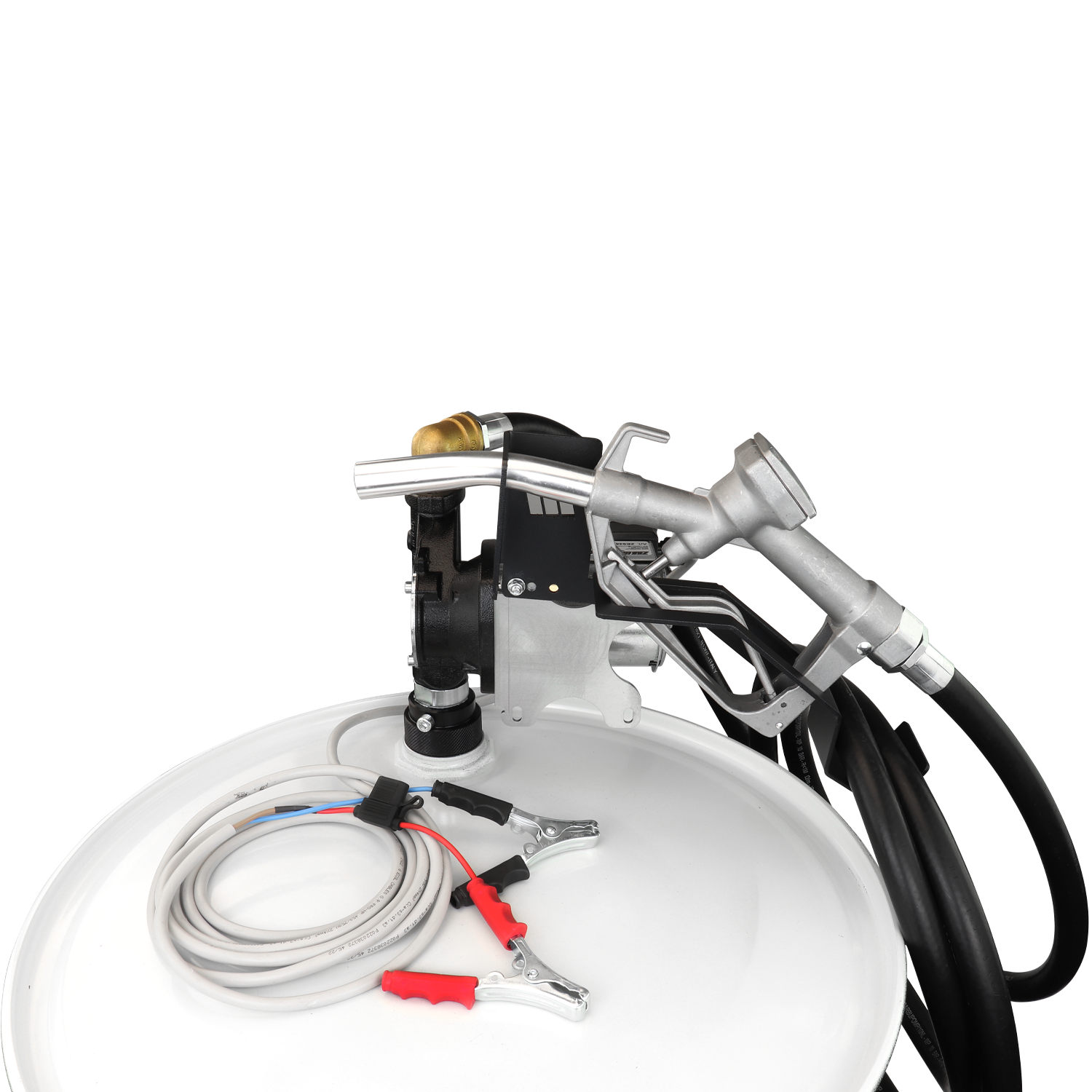

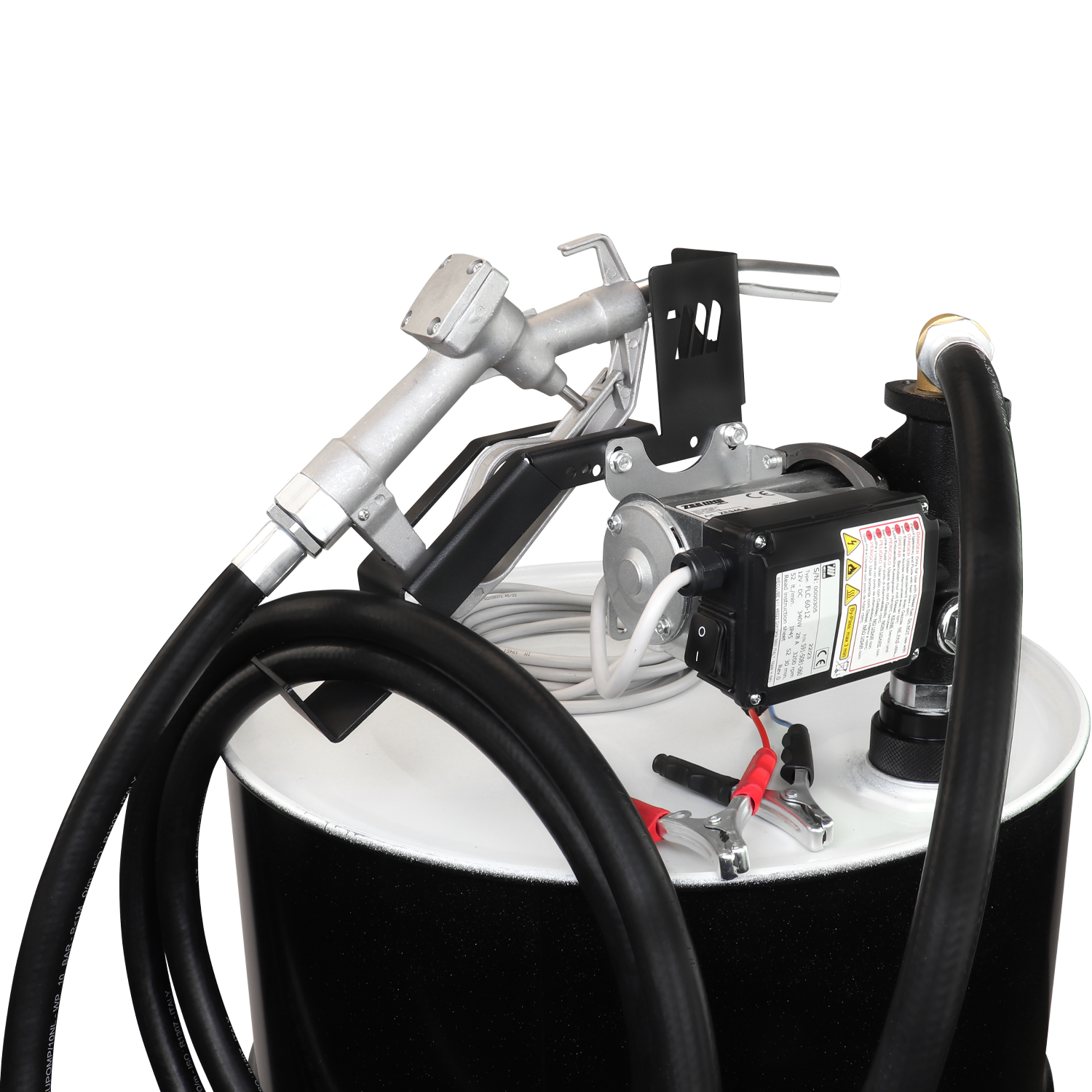

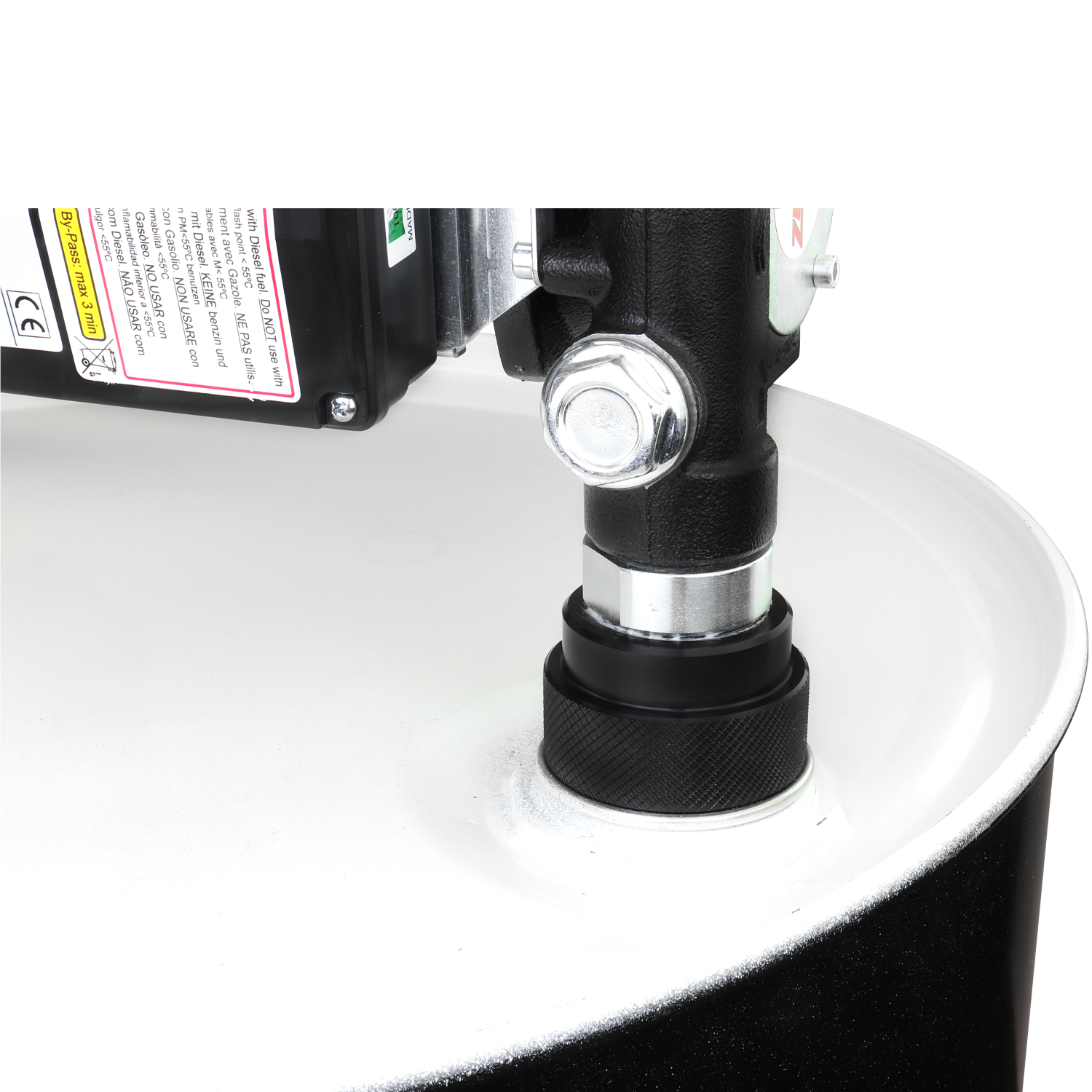

This 12-Volt Electric fuel pump is designed for transferring diesel fuels only. This pump kit includes a 13-foot delivery hose, a manual style dispensing nozzle, nozzle bracket, and telescoping pickup. This pump will transfer diesel fuel from containers with a 2” port opening and can transfer diesel fuel to equipment or containers with ease. With a delivery rate of 16 GPM this diesel transfer pump can deliver efficiently and reduce down time for refueling.
